My Beacon (MEPT) Circuit

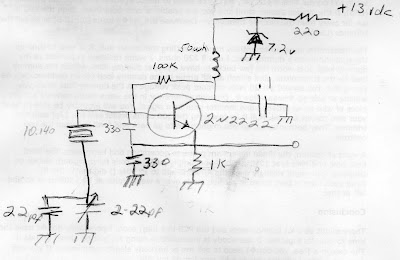

Guys have been asking to see the schematic for my 30 meter QRSS MEPT beacon. Here's the oscillator circuit. This actually started out on a plane ride. My son Billy and I were talking about electronics. I drew a basic schematic for an oscillator, and we built one when we got home. It originally used a 20 meter crystal. At one point we were playing "find the oscillator" -- hiding it somewhere in the house, and tracking it down with a Sony shortwave receiver. Now, with some modifications, it is the first stage in my 30 meter MEPT beacon.

An ugly schematic for a rig built with the ugly construction technique. Nothing fancy here. Two feedback amps and a PNP transistor as a switch to key them. I let the oscillator run continuously. (Let me know if you can hear the "backwave"!) About 20 mw out. As you can see, it doesn't take much to get a QRSS signal on the air.

1 comment:

  1. Thanks for posting your schematic Bill. I am building my oscillator now and hope to have it running today. I plan on having my circuit operatonal before I leave on vacation. I will be flying to Kauai next Wednesday and I plan on letting my MEPT beacon run for the 2 weeks I will be there. I don't know the exact details yet but I will keep you informed. My callsign will be W8OAJ/KH6

    73's
    Alan
