Friday, May 14, 2010

The Death of a 2N3904: Captured on Grabber Video!

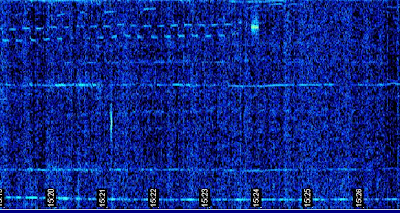

On Sunday I was working on my little DaVinci QRSS transmitter. I had it on, happily generating FSK on 30 meters. Then all of a sudden I noticed that power out had dropped to zero. I suspected a blown final transistor -- this was before the installation of my elegant Altoids smoke-stack heat sink, and the little 2N3904 I was using in the final was getting quite hot (it runs Class A). Almost instinctively, I turned to the ON5EX grabber. The image from Johan's receive system captured the final moment of that transistor. See that bright spot where the square wave ends? That's when the transistor blew. I tested the 2N3904 out of circuit: the base-collector junction is now completely open (no current in either direction). The death of this transistor may also have been related to the intermittently bad 4700 ohm resistor in the bias circuit. The 2n3904 has been replaced by a more robust 2N3053 sent to me by AA1TJ. It is protected by the Altoids smoke-stack heat sink (scroll down for schematics and an image).

Hope everyone is having fun at Dayton. I caught G3RJV's talk yesterday via streaming video. As always, inspiring stuff! And I really liked a word he used: socketry. You know, "the PC board, and the box will all the associated SOCKETRY."

5 comments:

  1. Hi Bill,

    If it's FSK, why not run the PA in class C? The transistor wouldn't get as warm.

    73,
    Niels PA1DSP.

    ReplyDelete
  2. Captured the final moment... that's pretty nice.

    ReplyDelete
  3. Tsk. That young 3904. Cut down in it's prime.

    73.......Steve Smith WB6TNL

    ReplyDelete
  4. Reminds me of the movie Fail Safe, the American president (Henry Fonda) is talking to the ambassador in Moscow and is telling that the Russian can't stop the bombers. He will know they dropped the nukes when he hears a high pitch tone as the phone melts in the blast. Guess I should explain it was Cold War drama about an accidental nuclear war. Keep up the great work Bill.

    ReplyDelete
  5. On further inspection it turns out that the transistor was not blown. Apparently just the 4.7K resistor went bad, incapacitating the PA stage (but without frying the resistor).

    This gets us to Niels question. At these low power levels it can be difficult to get enough drive to run a PA in Class C, right? For this reason Doug Demaw often went with a class A amp in rigs with just the oscillator and one amplifier.

    ReplyDelete
