ON6WJ's Sputnik Rig

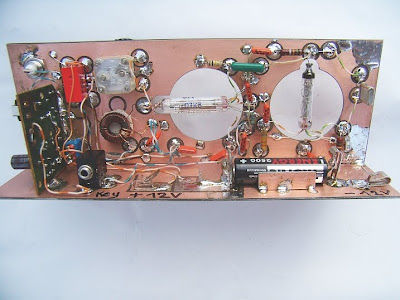

I think Jos's rig is magnificent. He is getting the high voltage for the tubes from a cheap (3 Euros!) 12 Volt to 120 Volt DC/DC inverter that he picked up via e-bay. (I think you can see the inverter board to the left of the headphone jack.) He runs it from a 12 volt gel cell. The little battery is for the filaments. He gets about 700 mw out, and had a very solid 15 minute QSO with Jim, W1PID yesterday. FB Jos!

More Sputnik news (with some audio from the original) tomorrow.

DSW to all!


Our book: "SolderSmoke -- Global Adventures in Wireless Electronics"http://soldersmoke.com/book.htmOur coffee mugs, T-Shirts, bumper stickers: http://www.cafepress.com/SolderSmokeOur Book Store: http://astore.amazon.com/contracross-20

1 comment:

  1. That's really cool. To me it harkens back to those old AM BC transmitters with the big tubes behind a pane of glass.

    "97-X....BAM! The Future of Rock & Roll!"

    73.......Steve Smith WB6TNL
    "Snort Rosin"
