A SolderSmoke Message to the Vintage SSB Net

Inspired by what I heard on the Vintage SSB Net web site, I wrote to the group:

Esteemed Vintage OTs:

As the proud owner of an HT-37/Drake 2B station, I immediately identified with the values embraced by your inspiring preamble. It is almost as good as that other preamble that we all hear about from time-to-time.

On our SolderSmoke podcast, we often discuss the cluelessness of many of the operators of modern appliance "radios" :

-- How often have we called CQ on a clear frequency on 40 meters, only to be answered by a chorus  of "YOU ARE ON THE WRONG FREQUENCY!"?  (How could that be?  What was WRONG with my frequency?  It took me a while to realize that they think 40 has been channelized and that emissions must be on whole kilohertz frequencies.)

-- How many times has someone whose "rig" is really a computer complained that your "60 over S9" signal is "too wide" on his waterfall?

-- How many times have we had to deal with the apparent psychological trauma caused to some hams by an ancient VFO that drifts a little bit?

"You are drifting ALL OVER THE BAND!"

"How far have I moved?"

"More than 40 hertz!"

Oh the humanity!

Anyway, we really liked your preamble, especially the bit about how "smoke and flames may occur at any time." Words to live by my friends.

Could we please have a written version of the preamble?  We want to recommend that all SolderSmoke listeners post it on the walls of their radio shacks.  Some of them may want to have it tattooed on their backs (we leave that to them).

73 and keep warm out there (the boatanchor rigs really help with this).

Bill  N2CQR

Putting the QCX on SSB

Here is a very cool mod to Hans Summers' amazing QCX CW phasing transceiver.  This rig seemed to have been crying out for an SSB mod.  Guido has come up with a very clever way to put this rig on phone.

Guido PE1NNZ wrote:

Jan 28   2019

Over Christmas I have been playing around with a simple modification that transforms the QCX into a Class-E driven SSB transceiver. With this setup I have been able to make several SSB contacts and FT8 exchanges across Europe and so far this experiment is working reasonable well. It can be fully-continuous tuned through bands 160m-10m in the LSB/USB-modes with a 2200Hz bandwidth, provides up to 5W PEP SSB output and has a software-based full Break-In VOX for fast RX/TX switching in voice and digital operations.

The SSB transmit-stage is implemented in a completely digital and software-based manner: at the heart the ATMEGA328 is sampling the input-audio and reconstructing a SSB-signal by controlling the SI5351 PLL phase (through tiny frequency changes over 800kbit/s I2C) and controlling the PA Power (through PWM on the key-shaping circuit). In this way a highly power-efficient class-E driven SSB-signal can be realized; a PWM driven class-E design keeps the SSB transceiver simple, tiny, cool, power-efficient and low-cost (ie. no need for power-inefficient and complex linear amplifier with bulky heat-sink as often is seen in SSB transceivers).

An Open Source Arduino sketch is used as the basis for the firmware, a hardware modification bypasses the QCX CW filter and provides a microphone input in-place of the DVM-circuit; the mod is easy to apply and consist of four wires and four component changes and after applying the transceiver remains compatible with the original QCX (CW) firmware.

This experiment is created to try out what can be done with minimal hardware; a simple ATMEGA processor, a QCX and a bit of signal processing to make SSB in an artificial manner. It would be nice to add more features to the sketch, and see if the QCX design can be further simplified e.g. by implementing parts of the receiver stage in software. Feel free to experiment with this modification and let me know your thoughts or contribute here: https://github.com/threeme3/QCX-SSB

73, Guido

PE1NNZ

Schlitz Beer and Ham Radio

Another necktie in the hamshack. Can anyone identify any of the gear?

The Vintage SSB Net

This group looks like a lot of fun.  I like how they record the entire session and put it on the web.

http://www.vintagessb.net/index.htm

You should listen to their "preamble."  It describes the purpose of the net and the group's belief system.  Very well done.  These are our people!  I will request a full transcript of this important and inspirational document.

Here is a link to a reading of the net preamble:

http://vintagessb.net/wimpy/WB9KGZ%20Pat%20Sturgeon%20Bay,%20Wi.%20Net%20Control%20Pre-amble%20via%20N9RK%20Rick%201.26.19.mp3

"Smoke and flame may occur at any time!"

DON'T BE A VIOLATOR! NO MODERN RIGS!

HT-37/2B QSO with K6ZA (three short videos)

On January 23, 2019 on 20 meters I talked to Barry K6ZA.  He is near San Francisco.  I was running my Hallicrafters HT-37 with my Drake 2B.  I was really pleased to discover that the guy I was talking to loves these two pieces of gear as much as I do.

Barry said he wished I could record his voice coming out of the HT-37.   My iPhone came to the rescue.

The Secret Life of Machines -- Radio

We had this on fhe blog three years ago, but it is so good that it deserves a second posting.
Thanks to our old friend Stephen Walters for reminding us of this gem.  There is so much soul in these old machines. Thanks Stephen.

Godzilla, an SP-600, a D-104, and a Turner SSB+2 Transistorized Mic

We were in a restaurant last week and this trailer played on a TV that was all the way across the room.  The SP-600 caught my eye.  I once had one of those, but chickened out when I read about the horrors of black-beauty cap replacement.   There is also a D-104 in the trailer (several of those are with me now).  And the girl is transmitting with a Turner SSB+2 Transistorized mic -- I have one of those also.

Thomas K4SWL over at The SWLing Post  notes that the SP-600 Tuning Dial appears to have been modified.  I'm thinking the wanted it to look like some sort of transmitter output meter.

I think I can also see some sort of Collins antenna tuner.

Any ideas on whose shack this all comes from?   It looks like a real ham shack.

From the trailer, it appears that the ham gear somehow helped us establish contact with Godzilla, who then went on to save the planet.  I hope.  ONCE AGAIN, HAM RADIO SAVES THE DAY!

The ham radio stuff is in the first minute or so of the trailer.

Rescued at Sea! Saved by an S-38!

Just click on the ad to enlarge it.

Another cartoon relayed via the Facebook page of Jeff Murray K1NSS.

Sure, there was a rescue at sea, but what about all the casualties caused by the AC/DC "widow-maker" S-38 power supply?

When Hams Wore Neckties, and AM Transmitters Were in the Living Room

Jeff Murray K1NSS had this on his Facebook page.  Great stuff.  But I felt like yelling out, "Stay in the basement OM!  Stick with your haywire rig!"

A Homebrew HRO Dial by DL6WD, Homebrew Hero

Take a look at that beautiful rig in the bottom of the cover pictures. (A closer shot appears below.)  That is an HRO dial, right?  Or is it?

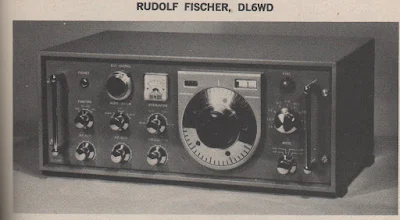

No, it is not.  In the picture we see the homebrew receiver designed and built during the 1960s by Rudolf Fishcer, DL6WD.  It is magnificent in every respect.  Because I have been working with the HRO dial and gearbox given to me by Armand WA1UQO, the tuning dial on this receiver caught my attention.

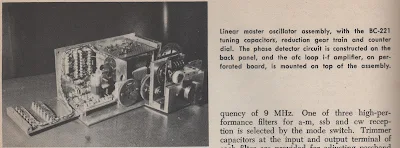

Here is what DL6WD says about this part of his project:  "The main tuning gear was built around a BC-221 tuning capacitor and reduction gear. The counter dial and tuning knob are the result of four weeks of labor, The counter dial reads in tens of kHz, where the main tuning knob has a calibration of 200 Hz per division, from an HRO inspiration."  The counter is in the little window to the upper left of the tuning knob. The window to the upper right is a phase-lock indicator. (See below.)

By the way, by the time DL6WD got finished with this all solid state receiver it weighed in at 52 pounds.  Rudolf noted that "excessive shielding pays in electrical performance, but not in weight!"

DL6WD earns the title "Homebrew Hero."

Switching to a Mechanical Filter from 1967 for my HRO-ish Receiver (with video)

From RSGB Handbook 1982

Having overcome the difficulties with the National NPW Dial and Gearbox, I turned my attention to the 455 kHz filter.  I had been using this old Toyo CM - 455 kc filter (Date stamped August 1969).  CM stands for "Crystal-Mechanical."  These filters are hybrid with some of the features of a crystal filter and some of the features of a mechanical filter. For more details go here:
https://soldersmoke.blogspot.com/2016/04/the-meaning-of-cm-in-toyo-cm-455-filter.html

I was disappointed by the CM filter.  It seemed very lossey, and it just didn't seem to be of sufficiently high Q -- it seemed very broad. I could hear the other side of zero beat.  It was barely a "single signal" receiver,  and being "single signal" is the whole point of a superhet.

I remembered that Pete Juliano had sent me a Japanese-made 455 kc mechanical filter. Maybe this would do better.  Last night I did a quick comparison test and -- wow -- Pete's filter was much better.  The Fifth Edition of the RSGB Handbook seems to agree with my assessment, noting that mechanical resonator filters were superior to the Crystal Mechanical hybrids (see pages 4.17 and 4.18)

Pete's filter is from the Kokusai Electric Company.   Part# MF 455 ZL.  (Date stamped May 1967). "ZL"indicates lower sideband.   I checked and indeed the passband goes from just above 452 kc up to about 454.5 kc.  This is a 40 meter receiver and SSB on 40 is LSB, so this filter would work perfectly right?  Not so fast!  Sideband inversion had to be considered.

I was running my VFO from about 7455 to 7755 kHz.  This means that the modulated incoming signal would be SUBTRACTED FROM the VFO signal to get to  the 455 kHZ IF.  And when that knd of subtraction happens, we have sideband inversion.  The LSB signal will look like a USB signal when it reaches the filter.

My BFO was running right at 455 kHz, using a ceramic resonator at that frequency. I briefly considered just shifting it down to 452 kHz, but this proved to be difficult.  Then I got a better idea.

I could just shift the VFO down to 6545 to 6845 kHz.  This would mean that the VFO frequency would be subtracted from the incoming modulated frequency.  There would be no sideband inversion.  I had been thinking about doing this frequency shift anyway, thinking that VFO stability gets better as you go lower in frequency.

REMEMBER THE RULE:  If you are subtracting the modulated (signal) frequency from the frequency of the local oscillator or VFO, only then will you have sideband inversion.  See:
https://soldersmoke.blogspot.com/2015/05/sideband-inversion.html

Moving the VFO was easy. I am using a variable capacitor with several variable caps on the same rotor.  I just moved from the smallest variable cap to the middle variable cap -- this added capacitance to the system and lowered the frequency.   I also added three additional turns on the coil.  This put me very close to where I needed the frequency to be.  I added one additional 9 pf cap and this put the VFO freq right where I wanted it.

I was really  glad to include Pete's filter in this receiver.   The mechanical resonator technology fits very well with the very mechanical old-tech theme of this project (it already had a gearbox -- a mechanical filter seemed to fit right in).   It is a fascinating device -- it is almost like having a set of tuning forks all tuned to 455 kc (see above for the RSGB description of how it works).    And having it from from Pete adds a TREMENDOUS amount of mojo, juju, and soul to the new machine.

Icing on the cake: As I type this, I am listening to Fred K3ZO converse in Spanish with hams all through South America.  Fred preceded me by three decades at the U.S. Embassy in Santo Domingo, but when I got there the local hams were still talking about him  -- he was much loved and admired by the Dominican hams.  TRGHS. See Fred's story here (scroll down a bit): http://www.gadgeteer.us/DRDISP.HTM

Solar Cycle 25 -- The High Frequency Oracle Has Spoken (THFOHS!)

Not quite as authoritative as a spoken message from the The Radio Gods themselves (as in TRGHS), but the HF Oracle seems to be well connected.   Time to start planning for Moxons and Hex Beams!

Read the full poetic report from the Oracle here:

https://forums.qrz.com/index.php?threads/the-hf-oracle-prognostication-for-solar-cycle-25.626433/

National Dial and Gearbox Problem Resolved

Thanks to all who offered advice and assistance.  With help from you guys -- and  especially from Pete Juliano N6QW -- I think I have this fixed.

Pete was right -- the problem was really with the variable capacitor.  The one I was using was kind of stiff and irregular in its motion.  I found another one in the junk box that was easier to turn (it has one set of ball bearings).  This fixed most of the problem.

I also spent more time making sure the shaft of the cap lined up perfectly with the shaft of the gear box.  This also helped a lot.

I realize now that some of the "stickiness" that I occasionally feel while tuning may be coming from the dial -- not from the gear box.  It looks like my dial took a hit that slightly bent one portion of it.  It seems that the numbers have a bit of trouble clicking over on that portion of the dial. Some lubricant may help there.  But I can live with it.

The receiver now tunes very smoothly and I can go right back to a frequency and find the signal exactly where I left it.  There does seem to be a very slight difference depending on whether I "approach from above" or "approach from below" -- but this is not a big deal.

Check out the pictures of the receiver and the VFO.  Note the "cardboard from a coat hanger" coil form.  The winding is held in place with nail polish varnish.  I had planned on having the variable cap, the coil , and the associated fixed caps all in a box for better thermal stability, but the VFO is very stable even without the box.  I have the VFO running 455 kc ABOVE the signal frequency.  It runs from about 7455 kc to about 7800 kc.  I could have set it up to run 455 kc BELOW the signal freq.   That would have made it a bit more stable (it is easier to attain VFO stability at lower frequencies) but VFO is so stable that I probably won't mess with it. I followed DeMaw's rules:  Physical stability, NP0 caps.  For the NP0 caps, put several of them in parallel to get the desired capacitance value. Keep heat-producing active components away from the coils and caps.

Thanks again to Armand WA1UQO for giving me this amazing piece of radio history. And thanks to Tim Sutton for the big box that holds this receiver.

James Millen knew what he was doing.  See: http://www.isquare.com/millen/millen-page.htm

M0KOV's Real Life Dilbert Moment -- His Mom Took Him to the Doctor

M0KOV's BITX

Dilbert's mother took him to the doctor because of ham radio.  Jean Shepherd's date said that Shep's mother should "take him to a doctor" (he was obsessing over his Heising modulator.)  And now we learn that Steve M0KOV was hauled into the doctor's office because of his "obsession with electronics."  You are in good company Steve.  The Knack diagnosis is confirmed.

From Steve M0KOV:

Just watched young Dilbert at the doctor's surgery.

Although I was late getting my ham licence, I'm sure that I fit the standard knack victim mould. I built my first radio at the age of 10 and even before then I preferred to be bought batteries, switches and lamps rather than sweets. Within a couple of years my small bedroom comprised of a bed, somewhere to throw my clothes and an electronics work bench. The bench and  floor were completely covered with half built electronic projects, ex military radios, tools, my beloved old Heathkit oscilloscope and the rest.

Now, my true Dilbert moment. I remember being in the family doctors surgery and my mother was discussing my inability to get to sleep (a perfectly normal ailment for a 13 year old male). She was voicing her concern that it might be my obsession with electronics,  and it was all going round in my head and keeping me awake. Funny, later in my life she never seemed to be bothered if the worry of studying or exams kept me awake.

Thanks for another great podcast.

73 de Steve M0KOV

SolderSmoke Podcast #209 SKN, Old Rigs, Movie Review, Safety Tips, Mail Bag

SolderSmoke Podcast #209 is Available:

13 January 2019

http://soldersmoke.com/soldersmoke209.mp3

An HT-37 "With Presence!"  Even on CW!  A Straight Key Night Story
Saving a much-loved HT-37
Drake 2-B Alignment
Tweaking the Mate for the Mighty Midget
Fixing a Deaf DC Receiver
A Wobbly National HRO-ish Gear Box
Minimum Discernible Signal Tests
Pete's Festive Holiday Transceiver in a Bottle

Movie Review:  "First Man"  Neil Armstrong goes to the moon.

Safety Tips for 2019:  Fuses, Hard Drives, Flu Shots.

MAILBAG:
Dave G6AJW builds Pete's Sudden Transceiver
Rogier KJ6ETL builds a new shack
Steve N8NM Helps save the HT-37
Jim AL7RV W8NSA builds Parasets
Dave AA7EE puts a beacon on the air -- Please Listen!
Jan OM2ATC builds and documents an Si5351 VFO
Bruce KC1FSZ Homebrew's a BITX
KB1GMX's Tip on IRF-510 Oscillation Prevention
Ryan W7RLF Homebrews a DC Receiver

Listening to August K5HCT from the East and West Coasts on 40
Tim WA1HLR rebuilding his 1968 transmitter.

Old Station On-The-Air -- A Transmitter Half as Old as Radio Itself

I'm biased, but I think it is "a thing of beauty."   With some unexpected free time available, today I followed up on my HT-37 work by cleaning and aligning the Drake 2B.  I was assisted in this by one of the many great YouTube videos by Alan Wolke W2AEW.

The Drake 2B's 50 kc and 405 kc oscillators were right were they were supposed to be -- no adjustment required.  And I don't think they have been peaked since 1973.  The 455 kc IF can was also very close to perfectly tuned.

Since most stations from the mid-1960s had some QSL cards on the wall behind the rig, I pulled out some old ones and put them up.  Many of these contacts were made by the rigs in the picture.

If we say that 1897 marked the first use of radio, and if we assume that this HT-37 was manufactured in 1959,  that means that my old transmitter has been in operation for almost HALF of the history of radio.

The AL7RV (W8NSA) Paraset, Regens, Test Gear, and Schematics Varnished into Enclosures

Jim W8NSA ex AL7RV is an old friend and a really talented radio builder.  Over the years he has sent me many boxes of very FB radio parts.  I'm sure that almost all of my homebrew rigs have parts from Jim somewhere in the circuitry.  Jim recently sent in an update on his radio building efforts.

Bill,

I managed to cobble up some regen's over the summer.  Most fun was my version of Dave Richards, AA7EE  Sproutie, it turned out so nice I have it on my bedside table. Yes, the Sproutie has displaced the trusty old Transoceanic, brings back memories of late night SWL'ing with my Space Spanner as a teen.

The Sproutie worked well enough I'm considering a build of the Dave's Sproutie MK II, maybe not in such a grand cabinet or with such fine metal work as Dave's but a functional copy.

I also built the regen receiver from the SOE Paraset design, other then a coil winding mistake the receiver worked well at power up.

I built the Paraset receiver to test a number of mods others have suggested to improve the receiver's performance.  Using the mods involves modern solid-state components and additional band-spread functionally. Many consider the mods be in poor taste but they go well making a much better receiver.

I am ready to build my copy/version of the Paraset, now that I've missed SKN I have almost a year to get it built.


I've been gathering Paraset parts for years, was lucky to get in on the group purchase for a set of 3 Paraset knobs made from the same molds by the same company SOE used when building the transceivers in the 1940's, having a real part of that history is exciting, to me at least.

Paraset Parts (see picture above)  (some parts shown may not be in the proper location)

At last I have all the major components.  I am at the point of gathering up the various resistors and small fixed capacitors needed. Some builders have gone to the efforts of embedding newer, smaller, parts in the carcass of vintage 1930s & 40s parts hollowed out and repainted.  Too much effort for me, I want a functional radio, not a museum grade replica, but I really do want to keep the look of the SOE issued set.

Case and front panel...

Many of the U.S. Paraset builders are using a wooden craft box from Hobby Lobby, It is just about the correct size and shape.  You can see at the right side of the photo a detailed panel layout.  Building the Paraset is not quite Heath Kit but with so many talented builders having made so much information available I feel so lucky to follow the effort.

Years ago, during our RV travel days, I picked up a box of Bliley AX2 40 meter crystals.  Good price and just about every one of the crystals were found to be working.  Have a total of eighteen 40m crystals from 7.0024Mhz to 7.0986Mhz, have two 80m crystals in the CW portion but none of the AX2 crystals are for the traditional QRP frequencies, close but...   AF4K and others are selling HC49 crystals for the QRP frequencies, problem is the 6L6/6V6's used in the Paraset are known to be real crystal crackers.. (as was my 1964 novice rig!).

I'm considering the use of a transistor oscillator and driver stage to feed the 6L6 as a PA in effort to save the crystals and maybe allow the use of an outboard DDS VFO, yes I can hear the moans of dismay from other Paraset replica builders

The box included a number of sockets and crystal adapters too.  Was great find. Having so may 40m crystals I'm starting to have thoughts of optimizing the Paraset build for just 40 meters. I can improve the sets performance but of course lose 80m and possibly 60m.

Today's project while catching up on SolderSmoke Podcasts is a test device to aid in checking the resonant frequency of L/C networks. It's always nice to prove your math is correct!

See: http://www.agder.net/la8ak/m11.htm

Building it Manhattan style into an old rat shack plastic box.

I have always loved the way WW II equipment had the schematics varnished into the covers or cases.  I try to do the same with most of the things I build.

Schematic reduced to fit, ink-jet printed. Using an old credit card I spread a very thin layer of E6000 clear adhesive on the case, apply the paper image, then using a clean credit card or the edge of piece of circuit board feather the schematic into the adhesive.

Let dry for about 10 mins, wipe off the excess glue around the edges.  Let dry for 24  to 48 hours and cover with a few thin coats of Testors Clear Lacquer Overcoat.. several thin coats, follow the recommendations for re-coat time on the spay your using.

Please read the cautions for using E6000.  Pete may not be able to purchase it in his state!

The Paraset antenna output connections use a porcelain crystal socket, the AX2 crystal purchase included a few dead or empty crystal cases, I modified two of them to use as adapters.

OH! and yes, I'll be using outboard low pass filters with the Paraset!

Thanks again to you and Pete for the blog and smoke efforts!

73,  Jim W8NSA aka AL7RV

Jan's Slovakian Si5351 VFO

Jan in Slovakia put together a very comprehensive web page on his Si5351 VFO project.  Check it out:

https://janoc.rd-h.com/archives/649

Thanks Jans!

Please Listen for Dave AA7EE's New "Boris Beacon"

https://aa7ee.wordpress.com/2019/01/03/putting-the-hifer-brs-boris-beacon-on-the-air-finally/

From Dave's blog:

The beacon sends the letters “BRS” at 10wpm, with a break of 3 or 4 seconds between the end of one transmission and the beginning of the next, with a mighty power to the dipole of about 1mW. The frequency is a nominal 13556.9KHz (13.5569MHz), which varies either way by a few tens of Hz, depending on the outside ambient temperature. I will be overjoyed if anyone, anywhere hears it! There is no battery, so it transmits during daylight hours only. It comes on about half an hour after local sunrise, and goes off about half an hour before local sunset. I’ll update this with more accurate information, as I observe the on and off times over the next few days.
---------------
AA7EE is in Oakland California.  His cat is named SPRAT.  Please send him a report (and if possible a recording) if you hear his beacon.

New Rock Video By Astrophysicist and Queen lead-guitarist Dr. Brian May

We don't carry many music videos on this blog, but this one definitely belongs here.  We've mentioned Brian May several times:  Lead guitarist in the rock group Queen.  PhD Astrophysicist.

I didn't know that he went to work as a full member of the New Horizons (Pluto and beyond) mission.

The video is definitely for us -- it features a lot of antennas.   And it includes the computer-generated voice of Stephen Hawkings.

Read more about Brian's careers and about his latest adventure here:

https://www.space.com/42875-brian-may-new-horizons-song-ultima-thule-flyby.html

New Horizons principal investigator Alan Stern poses with astrophysicist and Queen lead guitarist Brian May on Dec. 31, 2018 at Johns Hopkins' Applied Physics Laboratory in Maryland just before New Horizons flew by Ultima Thule.

Credit: NASA/Bill Ingalls

HNY (Happy New Year), SKN (Straight Key Night) 2019, and an HT-37 with "presence" -- even on CW

I got the HT-37 working just a few days before the New Year's Eve/New Year's Day Straight Key Night event.  Looking at my older blog posts, I now see that the problems first surfaced in LAST YEAR's SKN.  Wow, it took me a long time to get to that problem. But I'm glad I fixed it in time for SKN.

For SKN I used the VU3XVR straight key from India that Farhan gave to me.   See the picture above.

I started out on 80 meters on New Year's eve.  I rarely operate on that band -- I thought it would be a good change of pace. Here is who I contacted on 80 CW:

In the warm-up period before the official start of SKN I worked John KU4AF.  John was running a homebrew tube transmitter and a REGEN receiver.  Respect, my friends.  RESPECT!

N9EP Ed near Chicago was on a K3.

VE9XX Don was on a KX3.

NJ8D Tom in Ohio.

K4IA, Buck, down the road in Fredricksburg Va.  Buck was running a Drake TR4C with a Begali key.  FB Buck.  He mentioned that he had had a Drake 2B -- he said he regrets selling it.  Indeed.

VE9WW Bill in Moncton NB.  On a straight key.

AA8MI Gene (gosh, that name really sings in CW -- try it!) in Ohio.  Gene was running 5 watts from a K3.  This added a needed QRP element to the festivities.  Thanks Gene.

AI4SV Jack in Rockville Md. OH MY GOD!   NOW I REALIZE WHO THIS WAS!  Jack!  Jack of Antanarivo Madagsascar!  And now I understand what he said to me.  He said in CW that my HT-37 has "Lots of presence." Huh?  What?  I couldn't figure out what he was talking about, but now I realize that he was joking about all our discussions mocking the poor audiophiles.  Well, thanks Jack. I'm glad the rig has presence, EVEN ON CW!  THIS QSO GETS MY VOTE FOR BEST SKN QSO.

I also listened for a while to W3GMS.  His signal had a lot of character and personality.  He was telling the other fellow that he suspected this was the result of a soft voltage regulator tube in his DX-60.  I think he was also using a Drake 2-B.  I didn't get a chance to talk to Howard, but I'm sure it would have been fun.

 On New Year's morning I switched bands.  First to 40 where I worked Greg NM2L near Atlanta. He said he fingers and wrist were out of condition, but I told him his fist was FB.

Then I went to 20 CW where I worked a bit of DX.  First David F8CRS then Bert F6HKA.  The contact with Bert reminded me of the charms of DX contacts using CW. "VY GM DR OM."  It was nice.

N7AQQ Mike in Montana.

So it was a good SKN for me. Working the French stations reminded me of the allure of listening to CW coming in from far away, and from a foreign culture.   And it was great to hear from AI4SV that my HT-37 has "presence" even on CW.

73 and HNY to all.
