Adding a Diode Ring to the Direct Conversion Receiver, And How the Diode Ring Works

I take a look back at Wes Hayward's classic DC receiver from the November 1968 QST.

I then try to describe how diode ring mixers work ("the particular go of it") using Alan Wolke's excellent YouTube description as my base.

I present some drawings that I did that use the "crossed diode" diagram as the start.

I also discuss interference from Radio Marti's 250 kW transmitter on 7335 kHz in Greenville NC.

Finally, we listen to the receiver a bit.

Alan Wolke's Diagram

Wes Hayward's 1968 DC Receiver

EXORCISM! 40 Meter RFI Problem Resolved

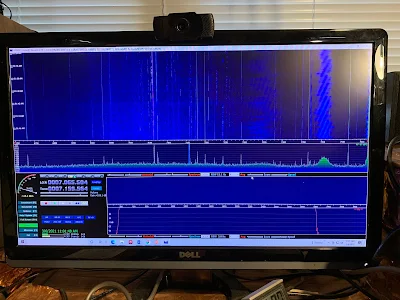

BEFORE

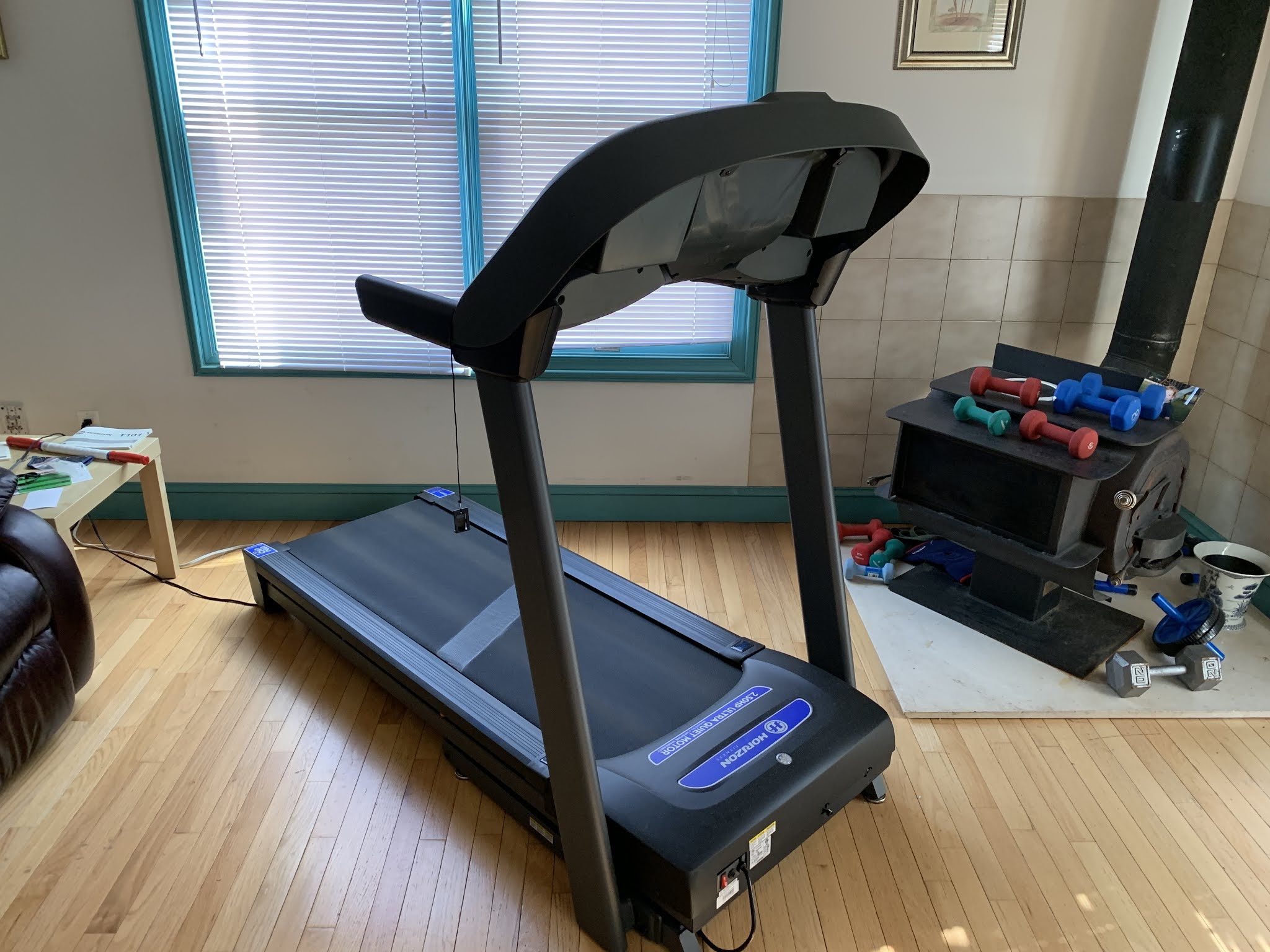

David W. suggested I use my RTL-SDR dongle to look for the source of the 40 meter RFI that I have been mentioning.  (It appears as an ugly stipe in the waterfall of my Hodgepodge transceiver.) So I fired up the RTL-SDR -- there were the tell-tale spikes, spaced neatly every 50 kHz.  The ARRL Handbook says this is typical of a switched power supply.  Before I started patrolling the neighborhood with a tin-foil hat and a portable receiver, I decided to check my own house for any recently installed electronic devices.  It didn't take long -- when I unplugged the new (mid-pandemic) treadmill the spikes disappeared.  This treadmill was located about ten feet above my rigs, and between the rigs and the antenna.  Duh.  I should have thought of this earlier. Mystery solved.  Thanks David.

AFTER

SolderSmoke Podcast #227: Solar System, SDR, Simple SSB, HA-600A, BITX17, Nesting Moxons? Mailbag

SolderSmoke Podcast #227 is available:

http://soldersmoke.com/soldersmoke227.mp3

Travelogue

Mars is moving away.  Jupiter and Saturn close in the sky.  And the Sun is back in action – Cycle 25 is underway.  Also, the earliest sunset is behind us.  Brighter days are ahead.

Book Review:  “Conquering the Electron”   With a quote from Nikola Tesla.

No real travel for us:   Hunkered down.  Lots of COVID cases around us.  Friends, relatives, neighbors.  Be careful.  You don’t want to be make it through 10 months of pandemic only to get sick at the very end.  SITS: Stay In The Shack.

Pete's Bench and Tech Adventures:

 Backpack SDR  keithsdr@groups.io

 Hermes Lite 2

 Coaching SSB builders

 G-QRP talk

 A new source for 9 MHz crystal filters

 Bill's Bench:

Fixing the HA-600A Product Detector.  Sherwood article advice. Diode Ring wins the day.  Fixing a scratchy variable capacitor.  Studying simple two diode singly balanced detectors.  Polyakov.  Getting San Jian frequency counter for it.



Fixing up the 17 meter BITX.  Expanding the VXO coverage.  Using it with NA5B's KiwiSDR.

Resurrecting the 17 meter Moxon.  But WHY can't I nest the 17 meter Moxon inside a 20 meter Moxon?  They do it with Hex beams.  Why so hard with Moxons? DK7ZB has a design, but I've often heard that this combo is problematic.  Any thoughts?   I could just buy a 20/17 Hex-beam but this seems kind of heretical for a HB station.

Suddenly getting RFI on 40 meters.  Every 50-60 Hz. Please tell me what you think this is (I played a recording).

MAILBAG:

Dean KK4DAS’s Furlough 40/20

Adam N0ZIB HB DC TCVR

Tony G4WIF  G-QRP Vids.  Video of George Dobbs.

Grayson KJ7UM Collecting Radioactive OA2s. Why?

Pete found W6BLZ Articles

Rogier KJ6ETL PA1ZZ lost his dog.  And we lost ours.

Steve Silverman KB3SII -- a nice old variable capacitor from Chelsea Radio Company.

Dave K8WPE thinks we already have a cult following.

Dan W4ERF paralleling amps to improve SNR.

Jim W8NSA -- An old friend.

Pete Eaton   WB9FLW    The Arecibo collapse

John WB4GTW old friend... friend of:

Taylor N4TD HB2HB

And finally, we got lots of mail about our editorial.   No surprise: Half supportive, half opposed.  Obviously everyone is entitled to their opinion.  And we are free to express ours.  It’s a free country, and we want it to stay that way. That is why we spoke out.

Yesterday the Electoral College voted, finalizing the results.  All Americans should be proud that the U.S. was able to carry out a free and fair national election with record turn out under difficult circumstances. And all loyal Americans should accept the results. That’s just the way it works in a democracy.

We are glad we said what we said. It would have been easier and more pleasant to just bury our heads in the sand and say nothing.  But this was a critically important election and we felt obligated as Americans to speak out.  We'd do it again. And in fact we reserve the right to speak out again if a similarly important issue arises.

FDIM: Bob Crane Interviews Ed Hare W1RFI

I always associate "Ed Hare" with that picture of him holding an HW-8 in the ARRL lab.

I was supposed to edit this one a bit at the beginning, but I forgot.  Sorry about that Ed.

Thanks to Ed and to Bob Crane for the interview.

http://soldersmoke.com/FDIM17W1RFI.mp3

High-Pass Filter Knocks Down AM Broadcast Interference

WFAX 1220 AM was starting to bother me.  Each morning, I'd be drinking my coffee, listening to nice roundtables on 160 meters, when, right at 6 AM, WFAX would fire up its 5 kW AM transmitter, 1.5 miles from my location.  And they would crush the "front end" of my R2 phasing receiver.  It doesn't take much to do that, since the only thing between the SBL-1 mixers in the R2 and the antenna is a signal splitter.  Obviously I needed some filtering.

I turned to the free program called Elsie (L-C, get it?) and quickly whipped up a design for a seven element, capacitive input high-pass filter that promised to take about 45 db out of WFAX's sails, without attenuating even the lowest end of Top Band.

Last night I scrounged through the junk boxes and found suitable capacitors.  A visit to an on-line toroid calculator showed that around 35 turns on a T-50-2 (red) iron powder core would yield the needed 6 uH coils.   I built the filter  this morning -- picture below.

It works very well.  You can see the results in the picture above.  The yellow trace on the 'scope shows the signal at the antenna terminal.  Yikes, it shows around 4 volts rms at 1.220 MHz (the scale is 5 volts/div).  The blue trace below is on the same scale -- this is the signal coming out of the filter.  Not enough to really measure on the 5 volts/division scale.

This was a very satisfying "quick and easy" build.   I really like the sound of the R2, so much so that I'm not firing up the DX-100 as much as I had been.  Instead I find myself just listening to the R2.

Another AM Broadcast Interference Story

Bill,Pete

Another great solder smoke podcast today.  I especially liked the detail
of you using the S-meter to check on the local broadcast station, and
the better reception you had on 160 with a resonant antenna.  Before I
retired I had spent over 25 years as a field service tech working on
neurological instrumentation.  One of the test our instruments performed
was called an Electro-Myography. Part of this test involved a needle
electrode being inserted into a muscle.  This was fed to an
instrumentation amplifier connected to a computer that processed the
output of the amplifier.  The signal from the amplifier was also fed to
a speaker so you could also hear the response of the muscle fibers
activating as you flexed the muscle.  One of my customers called and
said that quite often when he inserted the needle electrode, he heard
music  instead.
I made a trip to his office and  using a field strength meter, I could
see the modulation peaks on the FSM.  But only in one location against
the wall in the exam room.  I at first thought it might be from a
speaker cable for their intercom / background music system in the wall.
But there was no wires near that location , and it was an outside
wall.  I went outside with the FSM and found that the signal was coming
from the down-spout for the rain gutter. Apparently the gutter was
resonant at the frequency of the local AM station and the received
signal was being radiated through the wall and picked up by the amplifier.
I quickly got the set of jumper cables out of my van and connected the
down-spout to a near by water faucet, the signal went away. After a
quick trip to the local Home-Despot and picking up some heavy copper
wire and a ground clamp for the water pipe I was able to fix this
problem.  It is amazing how broadcast interference can show up in so
many places.

DuWayne
