Polyakov (RA3AAE) Direct Conversion Receiver: 40 meter DC RX with VFO at 3.5 - 3.6 MHz (with video)

I've been reading about Polyakov (or "sub-harmonic") Detectors for a long time:

https://soldersmoke.blogspot.com/search/label/Polyakov--Vladimir

But until now, I never built one.  Recently,  Dean KK4DAS and the Vienna Wireless Makers group have been building a Direct Conversion receiver.  Their receiver uses an Si5351 as the VFO, but of course Dean and I have decided to try to do things the hard way by building non-digital VFOs.  At first we just came to the conclusion that my earlier Ceramic Resonator VFO wasn't much good (it drifted too much).  This led us into standard Colpitts and Armstrong VFOs, and the fascinating world of temperature compensation.  Then I remembered the Polyakov circuit -- this would allow us to use a 3.5 MHz VFO on the 7 MHz band.  Lower frequency VFOs are easier to stabilize, so I started building my first Polyakov receiver.  You can see the results (on 40 meters) in the video above.

I started working with a circuit from SPRAT 110 (Spring 2002). Rudi Burse DK2RS built a Polyakov receiver for 80 and 40 that he called the Lauser Plus.  (Lauser means "young rascal" or "imp" in German.) For the AF amplifier, I just attached one of those cheap LM386 boards that you can get on the internet.  With it, I sometimes use some old Iphone headphones, or an amplified computer speaker.

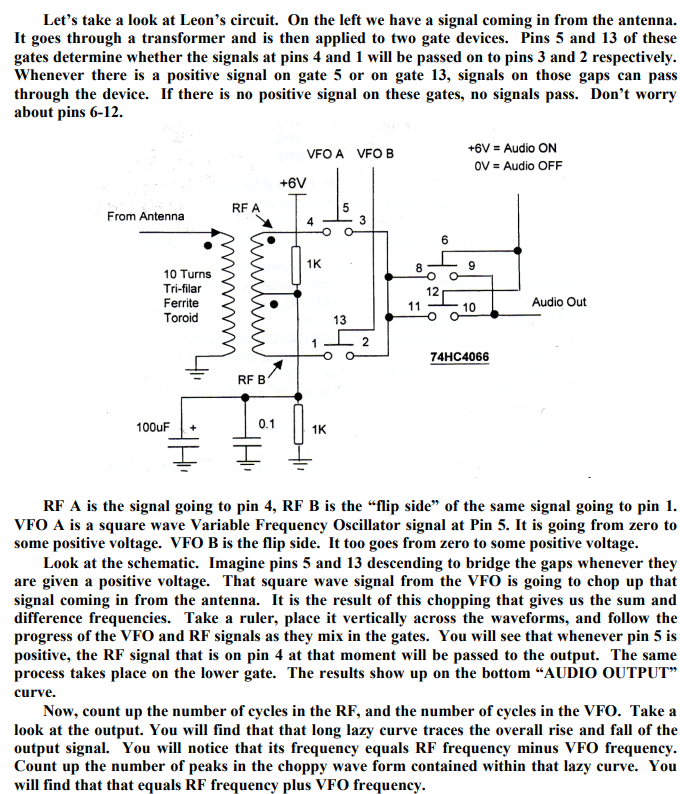

The Polyakov mixer is a "switching mixer."  The book excerpt below shows how I understand these circuits.  The enlightenment came from the Summer 1999 issue of SPRAT (click on the excerpt for an easier read):

Leon's circuit shows us how a simple switching circuit in which the switches are controlled by the VFO can result in an output that has the sum and difference components. That is the hallmark (and most useful part) of real mixing.  Remember -- we say that mixing happens in non-linear circuits when the passage of one signal depends on what is happening with the other signal.  A switch is as non-linear as you can get! And that switch is being controlled by the VFO.

In a Direct Conversion receiver we usually run the VFO at the operating frequency. This results in audio just above and just below the operating frequency.

The Polyakov Direct Conversion circuit is a bit different.  It has the switches (the diodes)  turned on twice each cycle:  When the VFO voltage goes to a positive peak, this turns on one of the diodes.  When the VFO goes to a negative peak, this turns on the other diode.   So in effect the switch is being turned on TWICE each cycle.  So with the Polyakov you run the VFO at HALF the operating frequency.  For a DC receiver designed to run around 7.060 MHz, you build a VFO at around 3.53 MHz.  This has some immediate advantages.  My favorite is that it is easier to get a VFO stable at a lower frequency.  It is easier to stabilize a VFO at 3.53 MHz than it is at 7.060 MHz.

When you open that SW 1 switch in the Lauser Plus, you no longer have a Polyakov mixer.  Now you just have a diode mixer.   It will be opening and closing once each cycle at the VFO frequency.  DK2RS used this to cover not only the 40 meter band (in Polyakov mode) but also the 80 meter band (in single diode detector mode).  That is why DK2RS has that big variable capacitor in the input circuit -- that LC circuit needs to tune all the way down to 3.5 MHz and all the way up to around 7.3 MHz.  (I used a coil of about 6.5 uH to do this.)

With just one diode and operating at 80 meters, it works, but not as well as it does in the Polyakov mode on 40.  I can pick up 80 meter signals, but in this mode there seems to be more of an "AM breakthrough" problem. "Experimental Methods in RF Design" on page 8.11  describes what is going on (the last sentence is most relevant here):

Here are some very good links with information on the Polyakov receiver:

LA8AK on Polyakov: http://noding.com/la8ak/c21.htm

LA8AK's Home Page: http://www.agder.net/la8ak/index1.htm

LA8AK SK: http://www.agder.net/la8ak/   Almost seventeen years after his death he continues to help his fellow radio amateurs through his web sites.  TNX OM!  FB!

BH1RBG: https://sites.google.com/site/linuxdigitallab/rf-ham-radio/dc-polyakov-based-first-dc-receiver

Hack-A-Day on Polyakov: https://hackaday.com/2015/11/15/polyakov-direct-digital-synthesis-receiver/

I will post a video tomorrow showing the receiver in operation on 80 meters.

Three cheers for Vlad Polyakov, RA3AAE

SolderSmoke Podcast #239: Hex DX, VFO Temp Comp, DC RX, Polyakov!, DX-100, Wireless Set, Farhan's "Daylight Again" HDR rig, MAILBAG

N2CQR Hex Beam Aimed at Europe

SolderSmoke #239 is available for download:

http://soldersmoke.com/soldersmoke239.mp3

TRAVELOGUE:

James Webb Space Telescope.  Mars returning to opposition in early December.

BILL'S BENCH

Hex Beam K4KIO - on roof – TV Rotor – 20-17-12  Lots of fun.  Working Japan regularly, Australia, South Africa on long path 17,000 miles.  52 countries SSB since July 11.

VFOs and Temp stabilization.  Dean KK4DAS found my ceramic resonator VFO for DC receiver drifty. He was right.  So I built a real LC Colpitts VFO.  Got me into temp stabilization.  A new hobby!  An obsession.  HT-37 and Ht-32 parts. Ovens?  WU2D’s second VFO video.  Understanding thermal drift and how to address it. Split stator caps.  Cut and try.

Built a Polyakov DC Receiver. https://soldersmoke.blogspot.com/2010/03/polyakov-plus-dual-band-receiver-with.html  Lauser Plus.  Lauser = Imp or Young Rascal!  DK2RS.  He used a ceramic Resonator VXO at 3.58 MHz.   Mine works great on 40 with VFO running 3.5 -- 3.65 MHz. See schematic below.

On 40 AM with DX-100 and MMMRX.  DX-100 died.  12BY7 VFO buffer went bad.  How common is failure in this tube type?  Nice QSO with Tim WA1HLR about the DX-100.

Got my Dominican license:  HI7/N2CQR!  SSSS on the way.   Thanks to Radio Club Dominicano and INDOTEL.

Getting more active in the Vienna Wireless Society.

BOOK REVIEW:

"The History of the Universe in 21 Stars” by Giles Sparrow.  Written during the pandemic.  Published by Welbeck, in London. https://www.amazon.com/History-Universe-21-Stars-imposters/dp/1787394654  Also:  From “Atoms to Amperes” by F.A. Wilson available for download.  See blog.

SHAMELESS COMMERCE DIVISION:

Todd K7TFC getting ready to launch “Mostly DIY RF.”   I used his TIA boards in my 1712 rig.  He will have boards like this and much more.  Stay tuned.

I need more viewers on YouTube.  They want 4,000 hours IN A CALENDAR YEAR!  Please watch!

FARHAN’S NEW “DAYLIGHT AGAIN” RIG.  Analog.  VFO.   Comments, observations. We need to get him on the podcast.  Maybe two shows: SDR and HDR.

PETE'S BENCH

Time very limited. But still sharing lots of tribal wisdom.

Wireless set with tubes!

Tool recommendation – Air compressor

 MAILBAG:

Farhan VU2ESE – Speaking of big antennas “Whenever I look at the huge construction cranes in Hyderabad, I always think how one could make 160m, 4 element yagi using it as a boom..”

Todd K7TFC in Spain, spotting Log Periodics in Madrid.

Andreas DL1AJG:  Can Biologists fix Radios?

Janis AB2RA Wireless Girl.  Expert on Hammarlunds.  And was my first contact with the Tuna Tin 2. She too was HB!

Peter Parker VK3YE on Owen Duffy VK1OD

Lex PH2LB on homebrew radio

Would this really be homebrew?  Mail from H-A-D article on FM receiver

F4IET a DSB rig from France

Ciprian got his ticket YO6DXE

Josh G3MOT sent us a good video about the Vanguard satellite and IGY.

Dave Wilcox K8WPE bought Chuck Penson’s Heathkit book.

Rogier -- So many great articles and links from PA1ZZ

Bill AH6FC  Aloha. Retiring.  Wants to build.  Mahalo!

Grayson KJ7UM  Working on an Si5351.  Gasp.

Mike KE0TPE viewing YouTube while monitoring 6 meters.   He will have a lot of time to watch!

Chris KD4PBJ spotted Don KM4UDX from VWS FB

Mark WB8YMV building a superhet.  Having trouble with 455 kc IF can filter.

Walter KA4KXX Great comment on the Daylight Again rig.

Ramakrishnan Now VU2JXN was VU3RDD.  Found lost Kindle with SolderSmoke book on it. Building SDR rig from junk box.  Trouble with the LM386.

Pete, Farhan and Tony:  Shelves of Shame

Daylight Again by Farhan

The Polyakov receiver I built yesterday (from SPRAT 110, 2002!)

Another HT-37 VFO -- No Temperature Compensation Trimmer Capacitor?

Is that thing beautiful or what?  That is the VFO assembly from an HT-37.  This one includes the fly-wheel mechanism.  It tunes 5 - 5.5 MHz.  I'll probably replace the tube with an FET, but mostly keep it as is for use in a future transceiver.  It is built like a battleship.  Hallicrafters did not mess around with the solidity of VFO construction.

I was a bit disappointed when I did not see the split stator temperature compensation trimmer cap that was present on the Hallicrafters variable cap that I bought back in February 2021:

https://soldersmoke.blogspot.com/2022/02/differential-temperature-compensation.html

I took a look inside my own (beloved) HT-37 and saw that it too lacks the temp compensation trimmer that came with the February 2021 variable cap.  Could it be that the February 2021 seller had the source wrong?  Could he have in fact been selling me the variable cap from an HT-32?  Or could it be that Hallicrafters added this split stator temp compensation capacitor to later versions of the HT-37?

Hallicrafters patented the split stator temp compensation circuit (U.S. patent #2718617).  Chuck Dachis says in his book about Hallicrafters that the company had perfected this circuit by 1957.

An HT-32B transmitter was selling for $725 in 1963.  That's $7020 in today's money.   Wow, and that is just for the transmitter!
