SolderSmoke (Old Smoke) Podcast #103 -- March 15, 2009 -- From Rome -- QRSS, Knights and Wizards, LTSpice, and an Echolink QSO with Jeff KO7M (the guy with the Piper Cub)

 15 March 2009

Beware the Ides of March!
Ostia Beach and Ostia Antica
248 Knights of QRSS. And Wizards!
ET Phones Home (with QRSS?)
Possible new grabbers in VK6 and Dubai
Telescope, Satellites...
REAL QRP QSOs on 80 and 40
Saving an old Toshiba Laptop
ECHO-QSO WITH JEFF, KO7M:
-- Piper Cubs and MFJ Cubs
-- Satellite QSOs
-- LT Spice and test gear
MAILBAG:
Gene W3PM listens from QE2, HB WSPR rig
Jim AL7V sending parts for my W3PM rig
Jim AB3CV's color burst Gnat
Jason NT7S on Tektronix guys and SolderSmoke
Kevin ZL3KE on old computers
Paul M1CNK's DDS 30-based QRSS beacon
Soeren OZ2DAK on exercise bikes to power beacons

FDIM: Listen to Bob Crane Interview Hans Summers, G0UPL

Bob Crane, our intrepid correspondent at the 2017 Four Day in May event, caught up with Homebrew Hero Hans Summers G0UPL.  Hans's amazing web sites have been the inspiration for many projects in my shacks.   My favorite so far was his QRSS transmitter using an LED based multivibrator circuit to generate a shark fin pattern on grabber screens.  That was fun.  I am now really tempted to send one of Hans's WSPR transmitters into the stratosphere using party balloons.

Listen to the interview here:

http://soldersmoke.com/FDIM17G0UPL.mp3

Visit Hans's QRP-Labs here:

https://www.qrp-labs.com/

Thanks Bob!  Thanks Hans!

Christmas Present! 4Z1UG's Interview with Han Summers G0UPL

I found myself almost cheering out loud as I listened to this wonderful interview, especially at the point where Hans lets it be known that he has NO COMMERCIAL HAM GEAR in his shack!  Yes!  That's the ticket!   You can also hear the story of Hans and Farhan meeting up in Mumbai for dinner. The interview includes discussion of  WSPR and QRSS and BITX and crystal ovens and, at the end, a special QSO TODAY overtime session in which Hans describes the little WSPR rigs that fly around the world, carried aloft by half-filled birthday party balloons.

Thanks to Eric 4Z1UG and Hans G0UPL for this very nice Christmas present.

Listen here:

http://www.qsotoday.com/podcasts/g0upl

The New "Gold Standard" in QRSS Grabbers

Bill

I just discovered Scott Harden's "QRSS Plus" grabber aggregator...

http://swharden.com/qrss/plus/

Check it out - it is the new "Gold Standard".

73, Paul

Our book: "SolderSmoke -- Global Adventures in Wireless Electronics" http://soldersmoke.com/book.htm Our coffee mugs, T-Shirts, bumper stickers: http://www.cafepress.com/SolderSmoke Our Book Store: http://astore.amazon.com/contracross-20

The Raspberry e-Bay Multi-Mode Beacon of M0XPD

From: Paul Darlington
Subject: Multi-mode QRSS beacon on the Raspberry Pi
To: "Bill Meara"
Date: Sunday, January 20, 2013, 8:32 AM

Hi Bill

Inspired by recent comment on your SolderSmoke blog, I got myself a DDS module from eBay.

Today I lashed it up to my new Raspberry Pi and now have CW and Hellschreiber pumping out on 40m.

I hope others will forgive my greedy use of the spectrum in transmitting "m0xpd :- Raspberry Pi" in Hellschreiber.

The story is here: http://m0xpd.blogspot.co.uk/2013/01/multi-mode-beacon-on-rpi.html

73 de Paul, m0xpd

http://m0xpd.blogspot.co.uk/2013/01/multi-mode-beacon-on-rpi.html

Our book: "SolderSmoke -- Global Adventures in Wireless Electronics" http://soldersmoke.com/book.htm Our coffee mugs, T-Shirts, bumper stickers: http://www.cafepress.com/SolderSmoke Our Book Store: http://astore.amazon.com/contracross-20

Las Cruces QRSS Mafia Attacks Pensacola!

OM Dave, WA5DJJ, writes to us about a different kind of SKN -- I guess this would be SLOWWWWWW Key Night!
-----------
Dear Bill,

Hope you and yours have a very Happy New Year.

I agree that Ashhar Farhan is one of the guys that I also admire
mainly because he is trying a valid approach to get amateurs on
the air. His designs are easy to construct, use simple common
parts and work well. I got really tickled when he said that he
kept his parts in two plastic tool boxes. I have so much I have
a hard time keeping mine in a garage with some spillage over to
the storage shed. But alas, I need to downsize.

Keep up the good work with SolderSmoke podcast. You are reaching
a lot of folks and also making a difference.

Our Las Cruces QRSS Mafia had a New Years 2012 on the air celebration
on 30 meter this New Years. We got 14 transmitters on the air and
managed to jam the Pensacola Snapper with so many signals that Bill

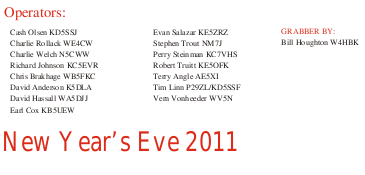

couldn't count them all. I attached the sheet I sent W4HBK to
mark the event. There wasn't much room left but others still got
in the holes. We did have a lot of fun plotting the event and getting
the 15 guys installing antennas, building transmitters, and programming
keyers. So, there was a lot of activity here to do the deed.

Anyway, Keep the soldering hot and the projects going. I like your
rebuild of your 17M transmitter. Nice project.

Take care and have fun in 2012.

73 Dave
David R. Hassall WA5DJJ
WEBSITE: http://www.zianet.com/dhassall/


Our book: "SolderSmoke -- Global Adventures in Wireless Electronics"http://soldersmoke.com/book.htmOur coffee mugs, T-Shirts, bumper stickers: http://www.cafepress.com/SolderSmokeOur Book Store: http://astore.amazon.com/contracross-20

The Polyakov QRSS Receiver

Of course, we like it because it is in an Altoid-like box. And because it is Direct Conversion. And because it is used for QRSS, with the output fed to an on-line grabber. But this one is EVEN BETTER because it uses a Polyakov detector!

Check out PA1GSJ's receiver: http://www.qsl.net/dl1gsj/html/qrssrx30.html

View the output (live): http://www.qsl.net/dl1gsj/qrss/

More on Polyakov detectors: http://soldersmoke.blogspot.com/search?q=polyakov

80 milliwatts to New Zealand (and Italy)

I realize that having your QRSS signal show up on a distant grabber is no big deal, but this was the first time I've seen the signal from my little DaVinci Code rig make the trip to ZL. You can see my shark fins in the screen shot above. It was just before dawn here, so gray line must have been helping. A Solar Flux Index of 92 also helped. My shark also made it across the Atlantic (and half the Med!) Mauro IK1WVQ's grabber made this nice capture (looks like this was around dawn at his location):

I measured the voltage at the antenna terminal this morning. Less than 2 volts peak. Assuming a 50 ohm load, that's about 80 milliwatts. This is all especially gratifying because yesterday I was out in the backyard with a slingshot and a fishing reel, putting a bit more wire into the trees. It worked!

Here's the transmitter and the schematic. FSK is from a simple two transistor multi-vibrator (G0UPL's circuit -- you can see it in the lower left):

First X-Class Flare of Cycle 24 Carries Shark To Spain!

Yesterday I predicted that solar activity would affect my little DaVinci code QRSS beacon. Sure enough, Pablo, EA4FUK, reports seeing my shark fin this morning on EA1FAQ's grabber. He sent this image:
A big X-Class flare took place at 0200Z, which was probably just a few hours before Pablo was looking at the FAQ grabber. This pond crossing probably also coincided with gray line time at his location.

Paul, NA5N, puts it all in context (in a message to QRP-L):

Gang,
There was an X2 flare about 0200Z 15 FEB (about 2100 EST). This has caused HF radio blackouts on the sunlit side of the sun (not us!). As this
subsides, the E/F layers will be highly ionized for good reflection. This
event has already elevated the solar flux to about 113 (average lately about
80-85). While this doesn't do much for us right now in North America, it
could create some very interesting morning gray line propagation if you're
one of those morning people.

The X2 event didn't have much density to it, only creating a shock wave of
about 550 km/sec. However, the M6 two days ago had a shock wave of about 1200 km/sec. - enough to cause a geomagnetic storm when it is expected to arrive Tuesday morning.

What is important is to keep an eye on the sun for further activity at:
http://www.swpc.noaa.gov/today.html or other sites.

These active regions are near the center of the sun, meaning any further
flares will send shock waves directly at us. The active regions are highly
magnetized, meaning they are capable of generating further M or X class
flares. If another flare or two happens tomorrow (Tuesday) during daylight hours, it will raise the solar flux and the higher bands will be open for the duration of daylight.

Therefore, the upper bands may be open, but may be interfered with for a few hours if a geomagnetic storm is triggered. It's a matter of dodging the bad stuff (geomagnetic storms) to get to the good stuff (enhanced E/F
propagation).

The only question left ... is this a hiccup on the sun, or is it finally
waking up from hibernation?

72, Paul NA5N

Big Solar Flare Likely to Disrupt DaVinci QRSS beacon!

The fellows over at spaceweather.com report a big solar flare yesterday at 1738 UTC (pictured above). This may, of course, have some impact on my 20 mW QRSS signal. I put the little Da Vinci code beacon back on the air yesterday. You can try to spot my Italian shark fins swimming past Pensacola, Florida: I put a miniature version of Bill, W4HBK's QRSS grabber in the right hand column of this blog. Just look to the right and scroll down a bit. Johan's Belgian Grabber is also there.

MOJ goes QRSS

Mark W8MOJ (aka "MOJ") is the artist who created the latest SolderSmoke theme music. MOJ has recently gone QRSS with Slow Feld Hell. Above you can see the results as captured by W4HBK's grabber. Note that MOJ is giving HELL to the N2CQR shark fins!

AJ4VD Solves the Barcode Mystery

The QRSS world was recently mystified by the sudden appearance of this monster on the European grabber screens. People quickly realized that it was a "QR barcode" -- kind of a souped-up version of the standard barcodes, this version holding more information. But what was the message? Scott Harden, AJ4VD, got on the case, and solved the mystery. Read about it here:
http://www.swharden.com/blog/2010-11-11-deciphering-qr-code-from-radio-spectrograph/
Scott is a very interesting fellow, and surely one of the younger "Knights of the QRSS." Check out his bio page: http://www.swharden.com/blog/?page_id=344
Bravo Scott!

The Secrets of Success of the Pensacola Snapper

Bill, W4HBK, sent a nice note in response to my blog post describing his MEPT QRSS grabber receive station. You can see the peninsula he describes above.
Bill writes:
Wow, what a pleasant surprise. I do remember pulling you out of the noise while you were in Italy and enjoying your reports from there. If there is a secret to my grabber it is a combination of environment and antenna. My neighborhood has underground utilities and is well away from town on a peninsula which juts out into Pensacola Bay. My main antenna is an inverted V 60' up in a tall pine tree for good low angle response and rejection of vertically polarized noise. About the only noise I hear is sferics. Thanks for the article. 73 bill w4hbk

W4HBK's QRSS Grabber: The Amazing Pensacola Snapper

When we were in Italy, ON5EX provided my "go to" grabber. Because we were just one ionospheric hop away, and because Johan had a really excellent receive system, it seemed like my little signals were visible on his screen from dawn to dusk every day.

Now that we are back in the States, W4HBK's grabber is playing a similar role for me. His grabber consistently seems to pull in more sigs than most of the other North American grabbers. The above image is a sample of what you will see when you visit his grabber web page. (I'm also a big fan of the W1BW and VE1VDM grabbers -- thanks guys!)

My signal is the "shark-fin" pattern just a little below the middle of the screen. That's 20 mw to a 50 foot piece of AC line cord about 12 feet off the ground. And it is making the trip from Northern Virginia to Pensacola Florida very consistently. Thanks Bill!

Try taking a look at the Pensacola Snapper and see if you can spot my QRSS signal. My frequency varies from day-to-day (sometimes intentionally!). And lately Bill has occasionally been parking his receiver on 40 meters :-( But most days you will be able to see his 30 meter screen, with my shark fins menacing Pensacola. Please let me know if you see me.

Here is OM HBK and his bio:
Born: 1939, Pensacola, Florida

I was first licensed in 1954 as WN4HBK and upgraded to General in 1955 acquiring the call sign I've used to this day. My dad is responsible for my favorite suffix moniker. the Hot Biscuit Kid. I could really put away my mom's scratch biscuits!

My first station I built myself and consisted of super regenerative RX and a 6L6 TX.from designs in the ARRL Handbook. My dad was a radio mechanic for the Navy and taught me how to read schematics and solder. Later stations consisted of Hallicrafters S-38C, National NC-98, HRO-5 recievers and several Heathkit and Globe Scout transmitters. Boy, those were the days!!

After high school I entered college intending to become an antenna engineer but eventually gravitated towards a degree in Physics. This was pretty cool because it led to a career with NASA where I worked on the Mercury, Gemini, Apollo and Space Shuttle projectsall thanks to my early interest in radio.

Today I'm fully retired and living in Gulf Breeze, FL. just across Pensacola Bay from my hometown. My XYL (Anna) and I enjoy the local beaches in a variety of wayssurf fishing, beachcombing, hiking, painting (her) and photography (me). We are also enjoy gardening and winemaking.

My Amateur Radio interests are CW, DX, contests, antennas and digital modes.

Presently I am experimenting with QRSS and have a 250 milliwatt MEPT station on 10.140 MHzsend me an email if you copy my signal. I now have a grabber to present a spectral display of QRSS activity for other Hams worldwide to watch for their signals http://www.qsl.net/w4hbk/w4hbkgrabber.html

SolderSmoke Podcast #127

SolderSmoke #127 has been released! Get it here:

http://www.soldersmoke.com/soldersmoke127.mp3

Topics covered:
Linux Ubuntu and Audio Quality.
Karmic Koala makes you EVEN YOUNGER
Reverse Culture shock, Woodpeckers, and the Washington METRO system
The smell of an old HT-37
75 meter AM
DaVinci Code QRSS rig on the air
Cul-de-sac astronomy with TWO telescopes
READING: SPRATS, Hot Iron, Sky Buddies, Wired
Jeri Ellsworth's homebrew transistors
Tatjana Van Vark's homebrew Enigma-like machine
MAILBAG
Antenna work and hamfests on the horizon

Back on the air with QRSS QRPp

I dusted off the old G0UPL QRSS QRPP FSK 30 meter transmitter (built and last used in Italy) and hooked it up to about 50 feet of AC line cord stretched low across the new Northern Virginia backyard. I hooked it up to my Kempton Park power supply (thanks for the chip Tony!) and fired up my freq counter (also from Kempton Park -- remember the chip I soldered in backwards?) I put a field strength meter next to the wire and tuned my L network for max smoke. Hey, and it worked! My signal is the wavy shark fin-looking thing. I think the wave results from a temp drop in the shack that happened when I opened the door. Just to confirm it was me, I turned the transmitter off for a few minutes. You can see me disappear from W1BW's screen.

Its good to be once again emitting EM waves!

A confession

Well, I didn't actually do it, but I thought about it. As the date of our departure from Italy approached, I was -- as readers and listeners will remember -- getting deeper and deeper into minimalist QRSS beacons. During the final weeks I was running my 15 mW Hans Summers-inspired varactor-modulated FSK transmitter from our country location up in the Sabine Hills. I had it running off one of my Volkswagen solar panels. I knew that the owner of the olive grove wouldn't mind if I left my nearly-invisible doublet antenna in the trees... You guys see where I was going with this. I came close to leaving that thing on the air. Sometimes I kind of wish I had. It would have been fun. But the QRSS beacons already seemed to be pushing the regulatory envelope a bit, so the solar panel and the beacon board went into the shipping container. I hope they will soon be radiating from Northern Virginia...

All OK here. We are getting settled. Our stuff should be arriving in the USA next week. We may have a new podcast out by early September.

We are still in a temporary apartment. This week Billy and I visited the local hardware store and got some very thin magnet wire. I have about 50 feet of it going from the balcony to a tree. As I type I'm listening to SSB net activity on 40 meters with my little Sony portable receiver. Man, that recent Coronal Mass Ejection really seems to have messed up propagation. But hopefully it is an indication that Ole' Sol is coming back to life.

YouTube meets QRSS

They seem like two very different technologies, right? They are certainly at opposite ends of the speed spectrum. But David, EA1FAQ, has made innovative use of YouTube video to present -- in a very useful form -- the signals received by his QRSS grabber over a three day period. This kind of system brings to to visual QRSS a bit of the retrivabililty that makes WSPR so useful and interesting.

David's test period happened to include the time that I was out at our country place with my 3 mW QRSS beacon. Back in Rome I could indeed see my sigs in David's video. He was kind enough to follow up with the actual shanpshot of my signal crossing the Med:

DaVinci Milliwatt Beacon Crosses the Pond

We were out in the country this weekend and I brought along the little DaVinci 10 milliwatt QRSS beacon. I was hoping that it would do better with the big dipole that I have out there (vs. the sub-optimal end-fed wire I use here in Rome). Success! Bill, W4HBK, saw the above image on his screen in Pensacola, Florida on Saturday evening. My signal is the little bumpy line just below the Morse signal. Joachim, PA1GSJ, also saw it, and passed along this image:

YET ANOTHER HB DSB QRP WSPR Station! And more "inverted FSK"!

Paul, M0XPD, reports that he has joined the DSB revolution and has put a homebrew DOUBLE Sideband WSPR signal on the air. The rig is pictured above. So I can no longer claim to be the ONLY DSB WSPR station in the world. FB Paul. For more details go to Paul's site:
http://m0xpd.blogspot.com/2010/05/homebrewed-whispers.html

This was the second time in a week that I've found someone else doing the same nutty thing that I've been doing. The first incident involved G0XAR. I found him transmitting upside down FSK on 30 meters. Again, I am no longer alone...
Note that both of my colleagues in radio eccentricity are from Britain, a land that takes justifiable pride in its eccentric boffins!
