My Receiver Doesn't Work Right! What Should I Do?

An early version of our DC receiver.  Note the tuning guide under the grey tuning knob.

We prepared this for use by the high school students who were building direct conversion receivers. Unfortunately none of them got to the point where they would use this little article, but given the fact that a number of people are now engaged in direct conversion receiver projects, I thought it would be a good idea to post this here. Also, much of this applies more generally to receiver problems.

My receiver doesn’t work right!

What should I do?

First, relax.  You will be able to get it to work.  The design is good, people around the world have built this receiver, and you will be able to get it to work.  But homebrew radio is not plug-and-play radio.  Sometimes a new receiver needs some tweaking, peaking, and coaxing.

Realize that the 40 meter band has its ups and downs.  The downs usually come at mid-day.  The sun’s position high in the sky causes a build up of the D layer of the ionosphere.  This tends to absorb radio waves. So signals are often weak at mid-day.  Signals will be much stronger in the morning, and in the evening.

Can you hear the “band noise” when you connect your antenna?   This sounds like hiss or static.  Some of this is the result of thunderstorms in Brazil.  Some of it is from events far away in the cosmos. Some of it comes from the weed whacker down the block!  But if you can hear this noise, that is a very good sign that your receiver is working.  The signals you are looking for will be stronger than this band noise.

Where are you tuning?  Your receiver tunes from about 6.8 MHz (with the screw all the way our) to about 7.8 MHz (screw all the way in).  But we are only really interested in the ham frequency band between 7.0 MHz and 7.3 MHz.  Try to tune your receiver near the middle of the tuning range (with the screw about half-way in).  You should hear morse code from about 7.0 to 7.06 MHz.  Then you should hear strong digital signals at 7.074 MHz.  Tuning further up (screw going in) you should start to hear hams speaking to each other using Single Sideband.   At first they will sound like Donald Duck.

 Don’t worry about the Donald Duck speech!  Just carefully tune through the signal until you hit the spot where the speech sounds normal.  You may have to tune up and down a bit until you find the right spot.  Now you can listen.

 If you tune further up you will hear Shortwave Broadcast band AM signals.  You will be able to tune them in.  Sort of.  But they will sound distorted.  This is unavoidable with this kind of receiver.  But you will be able to hear the hams on Single Sideband with no distortion.

Sometimes you will only hear one side of the conversation.  That is normal.  The other station may be either too far away from you, or too close to you.  You may be outside his or her skip zone.

One very obvious thing to check:  How is your battery?  Is it drained, or is it still at about 9 volts?   You may need to change it.

How is your antenna?   It doesn’t have to be fancy or elaborate.   33 feet of wire will do.  But it does need to be up in the air a bit.  And you need to have the 33 foot counterpoise wire connected to the ground (on the PC board).  With many pieces of consumer electronics antennas are kind of optional – the devices will often work without them.  Not so with ham gear.  Antennas are important.  If you are not receiving signals,  it may be because of your antenna.

SimpleX Super Superhet Receiver -- A Great Video from Mike WU2D

Here is another great video (and project) from Mike WU2D.  I'm a big fan of homebrew superhets.  And wow, Mike presents a band-imaging superhet!  Two bands for (almost) the price of one!  I have FIVE homebrew dual-band band-imaging transceivers around me.  Believe me, once you have the experience needed to build an SSB transceiver, a dual-bander is the way to go.  Five bands seems like a bit too much.  But two seems to be at the sweet spot.

I wrote to Mike reminding him to talk about the sideband inversion problem.  This rig will invert the 75 meter signals,  but this is easily resolved by just shifting the BFO frequency.  I also pointed out that many of today's builders will be detered by the need to scrounge for parts.  Where oh where is the BOM OM?

Thanks Mike!

Pete N6QW Has Hybrid Rig On-The-Air



A thing of beauty on a wooden board.  Pete's post:

https://n6qw.blogspot.com/2024/11/11252024-1st-dx-with-40m-hybrid-rig.html

"Them that know can make it go!"  Indeed.

Pete talked about the history of this rig, and especially of the Thermatron portion of it, in the most recent episode of the SolderSmoke podcast:

https://soldersmoke.blogspot.com/2024/11/soldersmoke-254-audi-and-video-versions.html

Thanks Pete!

Bill N2CQR Builds Yet Another Mythbuster Transceiver

 This one is for 20 meters (no need for 75) and will go to the Dominican Republic.

6 crystal filter at 5.2 MHz. VFO from old Yaesu FT-101 Termination Insensitive IF amplifiers using boards from Mostly DIY RF No RF amp ahead of the mixer. First mixer is homebrew diode ring. Bandpass filter has 4 LC circuits. Steep skirts. Low insertion loss. Bal Mod/Product detector has two diodes (singly balanced) Carrier osc is crystal controlled and homebrew. Audio amp starts with a 2N3904 amplifier followed by an LM386 board. Transmitter portion will be done next.

The crystal filter as seen on the Antuino

Filter on the blank board.

Bandpass filter (-20 db = 0)

VFO box, carrier osc, Bal Mod/Product Detector, AF amps

The Antuino looks at the Crystal Filter

KA1MUQ's Amazing Homebrew Hybrid Rig



Nate KA1MUQ is still working on this rig and so has not yet produced any detailed schematics, but he sent this to us to show that true homebrewing is NOT dead.  Indeed, his magnificent work shows that it is not!  This is a 5 band SSB transmitter using both transistors and Thermatrons. I see a crystal filter from Mostly DIY RF in there.  FB!   And Nate tapped into Pete Juliano's tribal wisdom on homebrewing and hybrid rigs.  Pete commented that the three 6146s in the final reminded him of a Yaesu FT-102.

Click on images for a better view.

Thanks Nate!

4Z4GE's Homebrew Tube SSB Transmitter from Israel, 1974

https://www.nzeldes.com/Miscellany/SSB-rig.htm

Very cool. I like his description of how he found parts for this transmitter:

The power amplifier tubes needed ventilation as well as shielding; that was always a challenge because I had no good source of perforated metal. The black sheet with the round holes actually came from the cover of a car air filter that I found in the trash.

There is a lot more interesting stuff on Nathan Zelde 4Z4GE's site:

https://www.nzeldes.com/possiblyinteresting.htm

Thanks Nathan!

A Clean Vintage Ham Radio Transmitter: The Collins 32S-3

In an article on IMD and splatter,  tech guru Rob Sherwood noted that the cleanest tranmitter he had ever owened was the Colling 32S-3.   Here is the article.  https://soldersmoke.blogspot.com/2024/09/sherwood-its-time-to-clean-up-our.html

In it, you will see thar Rob has the spectrum anayser two tone test to prove his point.

This got me wondering:  Why was the Collins transmitter so clean.   Today I looked at some ot the tech info on this rig.  I think I have found the answer. The Collins Collectors Association has a great page on the 32S-3: https://collinsradio.org/cca-collins-historical-archives/the-equipment-of-collins-radio/the-grey-boxes/32s-3/

The key lines are these:

Click on the paragraphs or go to the link for a clearer view

I think the explanation of Collins'32S-3 cleanliness is due to 1) Thermatrons in the final stages and 2) Negative feedback to take down any IMD products that might appear due to non-linearities in the finals.

There is nothing magical in that technique.  Heck, we could homebrew that today.  We could build HDR stations (perhaps transistor-tube hybrids) that would be cleaner than their commercial SDR cousins.

IMD in Transmitters -- Splatter? Or Signal Strength?

https://www.newsvhf.com/conf2024/PresPapers/WA1MBA-IMD_in_Transmitters.pdf

Here is a good (and very recent) article on IMD ("splatter") produced in transmitters. The focus is on VHF, but much of this is relevant to HF operators.  I found the footnotes on the ARRL "Clean Signal Initiative" to be worrisome.  They seem to just be assuming that all ham operators will be using commercial gear, and the "OEM" needs to be made to meet certain standards. This seems to leave the homebrewer out in the cold.  I can see where someday soon, the "standards" will exceed the capability of analog homebrewers.  That would be bad.

The role that signal strength plays in the perception of "splatter" is often misunderstood by the "waterfall police."  We often we hear some irate waterfall policeman screaming that,  "You are 40 over and far too wide."   Here is a good quote from the article on this point:

"If you have a calibrated spectrum display (as many SDR’s are these days), you can directly measure the level difference in dB. If it is 30 dB or more, then it could be an acceptably “clean signal”, even if it is bothersome. Most ham voice communication is conducted with less than 30 dB signal/noise, and in that case the unwanted IMD is buried in the noise."

And even in a low noise environment,  if the signal is 40 db over S9. that would mean the signal PEP is at -33dbm.  If the IMD products are 46 db down from the signal peak, that means your IMD products are -79 dbm.  That is S-8!   That signal will look quite wide in the waterfall, but it would be within FCC specs, right? The problem here is not so much distortion, as signal strength.  And let's remember that "legal limit" is usually a misnomer:  FCC regs require hams to use the minimum power necessary, not 1.5 kW on every single QSO.

IMD and Splatter



https://www.robkalmeijer.nl/techniek/electronica/radiotechniek/hambladen/hr/1988/10/page71/index.html

I think the point I was trying to make about the influence of signal strength is here:

Referring to fig. 1C, note the high level of rf at the 3rd order level - typically 36-dB down. Consequently, there will be rf energy outside the normal 23 kHz passband that will be only 36-dB below the carrier peaks, or about one four-thousandth of the peak power. Not bad if the station is only 25-30 dB out of the noise, but very objectionable if it's 40-60 dB out of the noise.

I think it is supposed to read "2-3 kHz passband" vice "23kHz passband."

I guess the point is that QRP levels of operation can hide a host of ills.   IMD ills.  This makes me wonder about the cleanliness of my own signals.   I will have to do some more careful measurements.

Woebot -- An AI-Based Therapy Bot for Us?



This was on 60 Minutes last night.  Of course it made me think of our many "Tales of Woe."  Perhaps this could be of use to us.   But I wonder how the bot would react to our typical problems:

"I am feeling bad about myself becasue my RF amplifier keeps going into oscillation.  What should I do?"

"My opposite sideband suppression is inadequate because my filter skirts are too wide. What is your advice?"

"My LC VFO drifts slightly and my SDR-using friends taunt me about this.  I feel dejected.  What should I do?"

"The Raspberry Pi in my SDR rig is hallucinating and I can't find the needed wisdom files. Is there a support group for this?"

"I have discovered spurs in the output of my transmitter.  They are 60 db down, but I still can't stop thinking about them.  What should I do?"

I can't help thinking that if Jean Shepherd had access to something like this, his Heising modulator trouble might not have spoiled his date with the girl from his school.

What do you guys think about the Woebot?

How to Feel Bad about Carrier Suppression (and How to Get Over It)

Version 2 of the 15-10 rig continues to give me trouble.  But I guess it is "good trouble" because I am learning from it.

You see, after you build an SSB rig, one of the critical alignment steps is the placement of the carrier oscillator/BFO frequency in relation to the filter passband.  (The IMSAI Guy has a good video on this -- see above.)  You want to place this oscillator somewhere on the downward skirt of the passband curve.  This will add to the carrier suppression already done by your balanced modulator.  There will always be some carrier remaining from the balanced modulator -- putting the oscillator frequency on the downward skirt of the filter passband adds to the suppression the carrier remnant.

But you can't overdo it.   If you place that carrier oscillator frequency too far down on the skirt, you will start to cutoff the low audio frequencies in your transmit and received signals.  You will notice that your once beautiful sounding receiver suddenly sounds tinny and high pitched.  Yuck.

So you go back to the books and the websites.  You look at the passband promissed by the Dishal software you used to design the filter.  See below:

Click on the image for a better view

Surely with a passband as nice as that one, you will be able to find the sweet spot where the carrier is suppressed and your audio remains pristine.

But I couldn't do this with the 15-10 rig.  I was forced to compromise: I had to accept less than optimal carrier suppression for less than optimal low frequency passband coverage.  And here is why:

Click on the image for a better view

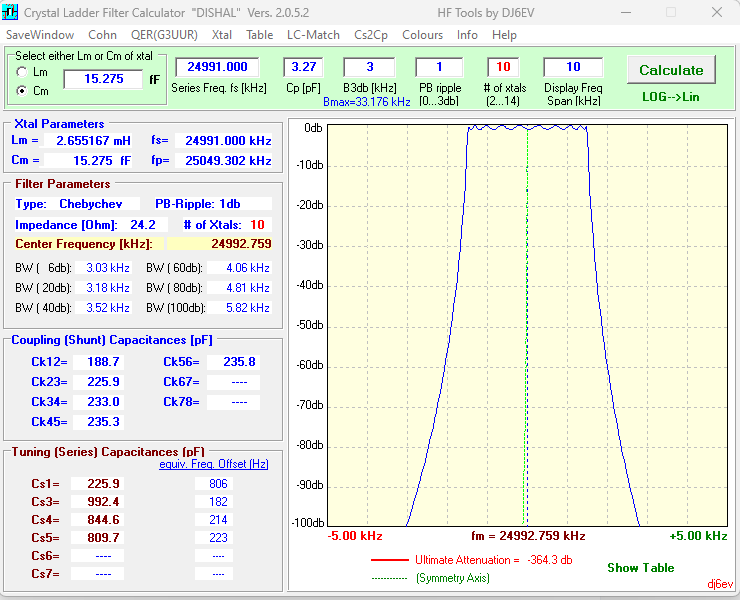

The curve above is a much more realistic picture of what my filter passband actually looks like (see NanoVNA picture below).  The curve above is from the AADE software.  I found out that the Dishal software DOES NOT factor in important things like Q or ESR.  Dishal treats all crystals as "loss-less radiators."  So when you get up to 25 MHz where Q is important, AADE and other programs will show you that your passband has become curved.  And you can see how this curvature makes it difficult to get the kind of carrier suppression and audio response we want.

What my filter looked like in a Nano VNA

Click for a better view

Look, the rigs work OK.  The receivers sound good to me.  The carrier is so far down that no one can hear it.  I have to remind myself that we are using 'SSB-SC" -- suppressed carrier, not eliminated carrier.  I've worked a lot of DX with these rigs.  But still,  I would like to improve the situation.  It kind of bothers me.  Homebrewers will understand.

I have been experimenting with different balanced modulators.  I started with the simple two diode, single transformer, singly balanced design from Farhan's BITX20.  It works fine.  But I think I get a bit better suppresson from a doubly balanced diode ring.  I may try an NE602 Gilbert Cell.   I may also try to build a higher Q 25 MHz filter using low-ESR surface mount crystals from Mouser.  Stay tuned.

Thanks to W7ZOI, VU2ESE, WN2A, KA4KXX, KK4DAS, N6QW, W2AEW, and G3UUR for all the good advice and encouragement.  Please put any additional ideas in the comments below.

Finishing up (?) Version 2 of my 15-10 Transceiver (Video) -- An Annoying Residual Carrier Problem

Front panel is on. RF PA is installed. Balanced Modulator problem fixed (?) Rig is on the air with about 3 watts, working lots of DX.

But there is an annoying amount of carrier that is still getting through. It is only about .5 watts with sidebands of 100 watts PEP, but it annoys me, and it makes the setting of the carrier frequency in relation to the filter passband very critical: If I set the carrier a bit too far from the passband I get improved carrier rejection (from the filter), but I also lose the lows in both received and transmitted signals -- the RX just doesn't sound as good. I see it in both of the 15-10 rigs (IF of 25 MHz). There is less of it in the 17-12 meter rig (IF of 21.4 MHZ), and none of it in the Mythbuster (75-20 meters) (IF of 5.2 MHz). I am now wondering if this might be a consequence of my using a very high (25 MHz) single conversion IF in the 15-10 rigs. What do you folks think?

From my log: March 7, 2024 PUT VERSION 2 of the 15-10 RIG ON THE AIR! 10S 1528 OK2RZ Jiri – said I was 57! 15S 1539 S52WW 58 Damian. 15S 1602 SP1NQH Stev said I am big signal! 10S S58N 1726Z 10S S58N 1726Z 10S S57S 1728Z 10S IK4GRO Lauro 1735Z 10S W0CJV 1825Z Ft. Collins Gary 10s 2000Zish KK7TV Gary in Randy. Asked what software/microcontroller I was using. 10S KJ5MFF 2015Zish a middle school in New Mexico. KI5MFF control op sent picture



Yet ANOTHER Homebrew 15-10 SSB Transceiver (Video #1)

A homebrew 15-10 SSB Rig for the Dominican Republic:

This is my second build of this rig.

I am using a 10 pole crystal filter that I built for the first build, but did not use. I am also using the tuning capacitor from a Galaxy V's oscillator -- I like the anti-backlash gears and the reduction drive. This rig is built on a pine board covered with adhesive copper tape. It has been built stage-by-stage on copper-clad boards using the Manhattan construction style.

The structure of the rig is basically that of a BITX rig -- the RF and IF amplifiers are Termination Insensitive Amplifiers.

Soon the receiver will be completed. I will then build the stages needed for the transmitter portion of the transceiver.

I will take this rig with me to the Dominican Republic.

Mostly DIY RF's Kit of Pete N6QW's P3ST



There it is.  Truly a thing of beauty. Order yours today!

https://mostlydiyrf.com/p3st/

SolderSmoke Podcast #248 -- Back from the Summer -- Spurs and Filters, S-meters, 6BA6 mania, Shirtpocket rigs, MAILBAG

The PsssT Kit, coming soon from Mostly DIY RF

SolderSmoke Podcast #248 is available for download:

Audio: http://soldersmoke.com/soldersmoke248.mp3

Video: (800) SolderSmoke Podcast #238 -- Spurs and Filters, S-meters, 6BA6 mania, Shirt-pocket rigs, Mailbag - YouTube

Travelogue:  Trip to the Dominican Republic 3-9 August.  Thinking about the M0NTV video on mixers...

Solder Smoke Shack South is almost done.   I am thinking about workbenches, operating tables and antennas.  How high should an electronics workbench be?   Table height?  Or workbench (woodwork) height?

My son and I went to see "Oppenheimer"  Trinity test scene very cool.  They wanted to see if the gadget would work!

Is the SolderSmoke blog completely archived on the WayBack Machine?  Please check and let me know.  Thanks.

Bill's Bench:

-- I've been working a lot of DX with the homebrew rigs:  Indonesia, Australia, Japan, Hawaii.  Lots of fun.  15 meters has been especially good. But the rigs still need work:

-- M0NTV's video got me to put TinySA to work.  I found that output from dual banders could be improved.  Spurs and harmonics. Yuck.  I need more TinySA -- ordered the TinySA Ultra.

-- Allison KB1GMX helped a lot.  EB63A amp was unstable, especially on 10 meters.  Higher frequencies are harder!  Tightened up shielding, negative feedback, and bypassing.  This all helped, but I found that I needed to take the higher frequency LP filters out of the amplifier box.  W3NQN filters are better, with steeper skirts and better 2nd harmonic rejections. NanoVNA proving very useful. https://www.gqrp.com/Datasheet_W3NQN.pdf

-- Also worked on the Bandpass filters for these rigs.  Farhan's comments on skirts of different filter configurations.  Some are "LSB" filters (with steeper skirt at the highest freq) and some are "USB" filters (with the steeper skirt at the lower frequency)  See diagrams on the blog page. So I built USB new filters for 12 meters and for 10 meters.

-- Danger that my unshielded wooden box rigs might be inviting feedback.  So I shielded the 1510 rig with copper guitar amp tape (conductive adhesive).  Good stuff.

-- Phase Noise rears its ugly head again.  See blog posts.

----------------------

SHAMELESS COMMERCE DIVISION:

Mostly DIY RF getting ready to release PsssT kits.  Target date:  December 18, 2023 (E Howard Armstrong's birthday).  https://mostlydiyrf.com/

Amazon Search box seems to have died.  I can't get it back.  Can anyone tell me what happened?  (There seems to be "explanations" from Amazon about this, but they are written in a strange language that I cannot follow.)  Something similar happened with the Google Ads on this blog page.  Apparently you can't have ads both on YouTube and blogger.

But hey, there is Patreon for those who want to support the podcast and blog.

-------------------------

Pete's Bench

An S-meter for Bill?

6BA6 Mania!

QRP SSB with 6BA6

Shirtpocket rig re-build

Mailbag:

Walter KA4KXX has a great article about homebrewing in the September 2023 QCWA Journal.

 Steve KC1QAY -- Has joined the CBLA.  I sent him a 3579 crystal.  He built a MMM and experienced JOO.  And Allison KB1GMX is in his local radio club.  TRGHS.

Ajay VU2TGG in Pune, India -- launching a high school receiver effort.

Denny VU2DGR The Wizard of Kerala: https://soldersmoke.blogspot.com/2023/08/the-wizard-of-kerala-india-denny-vu2dgr.html

Joe VK4BYER working with kids a remote Australian community.  FB.

Todd K7ZF -- Wants to get into homebrewing. Advised him to start small.

Dean KK4DAS:  Fixing Hallicrafters Worldwide RX. Ciudad Trujillo!  Got question from Mark in the VWS Makers Group:  HOW DOES Michigan Mighty Mite REALLY Work.  See blog.

Trevor Woods -- Info on Super Islander Mark IV made in Cuba from old CFL bulbs.  FB.

Bob KD4EBM sent me some great stuff:  Sony SW receiver,  QCX Mini.  Made a CW contact with the QCX.  Felt virtuous -- it is going to the DR.  Thanks Bob.

Peter KD2OMV:    One of the guys I worked with the ET-2 transceiver.  Great to hear from him.

Armand WA1UQO   Richmond area radio museum? https://www.youtube.com/watch?v=BSCmljje1p8

Mike WN2A -- Sent me a great care package with lots of toroids.  A lifetime supply!  Thanks Mike!

Nate KA1MUQ got his Doug DeMaw receiver going after 38 years!  FB.  Been there, done that!

Tony: G4WIF Liked Valveman video about Gerald Wells.  He visited him! https://soldersmoke.blogspot.com/2023/08/valveman-story-of-gerald-wells.html

Dean KL7MA  Bill talked to him on 15 SSB.  He had worked Wes W7ZOI!  FB!

On Ten Meters with a uBITX from the Eastern Tip of Hispaniola

On ten from HI7.  Cluster spots, DX, CW, and the Reverse Beacon Network.



Faust Gonsett and the SB-33 in 1963



Click on the images for better views

When this ad appeared in 73 Magazine in February 1963 I was 4 years old, living on Manhattan Island.  Pete N6QW was in the Navy, heading to Midway Island.

Pete writes:

-------------------

This ad has a tremendous impact on the foundations of our hobby. The SBE-33 was pure genius in its design and implementation.

1. It is a hybrid rig using Germanium transistors –the transistor was only 15 years old
2. The Mechanical band switching showed the strong use of mechanical assemblies
3. The small size was simply amazing
4. The Bi-lateral circuitry predates any Bitx circuits.
5. The urban legend was that a team of illuminati were involved in its design (Don Stoner is one name that pops up)
6. The Japanese were a quick study and the FTdx100 in 1967 is a result, only better.
7. Many are still around in shacks. I have three



Gonset was well known for innovative designs – the Gooney Box is another example. Look at all of his compact mobile equipment.



The next point – the final owner of SBE was Raytheon thusly the next generation of SDR Radio Equipment for the US Air Force can trace its pedigree to the SBE-33.



This was the appliance box of 1963. I saw my 1^st SBE-33 (August 1963) when likely you were in the 2^nd Grade and I was headed off to Midway island.

-----------------------



I have an SBE-33 that N6QW sent me. Thanks again Pete!

Also, I'd like to note that W6VR had a very cool name.  Faust Gonsett.  I just sounds like the name of a real radio guy.  Google says this of the given name Faust:

"Faust as a boy's name is of Latin origin, and the meaning of Faust is 'fortunate, enjoying good luck.'   Indeed.

New Video: Farhan's Presentation on the "Daylight Again" Analog Transceiver

LOTS of tribal wisdom in this presentation by Farhan VU2ESE.

For more info, go to:

https://www.vu2ese.com/index.php/2022/08/04/daylight-an-all-analog-radio/

SolderSmoke Podcast #156 -- November 4, 2013 -- Interview with Peter Parker VK3YE of Melbourne, Australia

November 4, 2013
Special hour-long interview with Peter Parker, VK3YE
-- Early experiences with radio
-- CW
-- DSB Gear
-- Simple gear, and gear that is TOO simple
-- VXOs, Super VXOs and Ceramic Resonators
-- Building receivers
-- Chips vs. Discrete
-- Making the leap to SSB
-- The Knob-less wonder and the BITX
-- No need for a sophisticated workshop
-- Advice for new phone QRPers

Peter's Blog: https://vk3ye.com/

Peter's YouTube Channel:  https://www.youtube.com/user/vk3ye/featured

HF Bandsweep with the Hammarlund HQ-100 (video)

It has been a while since we last did a bandsweep.  Too long.  Here is one using my recently fixed up Hammarlund HQ-100.  Repair details are in recent videos.

For this bandsweep we cover most of the HF band and even briefly dip down into the AM broadcast band:

Demonstration of the Hammarlund HQ-100: Radio Marti, 40 meter AM, 40 Meter SSB, 40 meter FT-8, 40 meter CW with and without the Q multiplier, classical music on WRMI, WFAX 1220 kHz AM, WWV 20 MHz, CB!, 17 meter SSB, the 20 meter BS position, the effect of AVC and the Noise Limiter, SSB with the internal BFO and with the Q multiplier as BFO. CW with the internal BFO AND the Q multiplier.

Be sure to subscribe to the YouTube channel.
