The 2Q -- A Homebrew Solid-State Drake 2-B from 1967

This is really an amazing project.  Way back in 1967 (that's 55 years ago) John Aggers W5ETT of Ponca City, Oklahoma decided to homebrew a solid state version of our beloved Drake 2-B receiver.  Triple conversion.  No crystal filters.  Twenty two discrete transistors and no ICs. Tuned circuits at 50 kHz to provide most of the selectivity.  And he did it.  Just look at the picture above.  It even LOOKS like a Drake 2-B.

I sent this to our friend Dale Parfitt, W4OP who more recently built a receiver like this.  He too was amazed by this project.

The article by John Aggers is very clear and provides a lot of good information on how he designed and built this receiver using the technology of 1967 and junk box parts.  I was struck by the lack of diode ring mixers. And I was somewhat taken aback by his use of plug-in socketed transistors.  The AF amplifier is our still-familiar transformer-less push-pull complementary pair design. John did a wonderful job on the mechanical tuning and slide rule mechanism.

Three cheers for John Aggers W5ETT.  This article is a reminder of the great benefit to the hobby of writing up a project and putting out there in the world.  Here we are, more than half a century later, reading John's article and learning from it.  FB OM.

https://worldradiohistory.com/Archive-DX/73-magazine/73-magazine-1967/73-magazine-10-october-1967.pdf

Page 8

SolderSmoke Podcast #235 NE-602, Azores Rig, Spur Problems, SSB Rigs, Peashooter, HB Filters, MAILBAG

SolderSmoke Podcast #235 is available for download:

http://soldersmoke.com/soldersmoke235.mp3

Travelogue:

6 weeks in the DR for Bill
One contact on uBITX. More SW listening.
Repaired my Chrome Book in Santo Domingo!
Christmas Present for All: James Web Space Telescope launch

Bill's Bench

-- Understanding the NE-602 (see blog post)

-- Thinking about a 17/12 dual bander.  Looked at old G3YCC Tx for circuits...

-- Using Spurtune08. WB9KZY found it.  In the LADPAC zip file here:

https://web.archive.org/web/20091222012628/http://w7zoi.net/emlad08_123.html

-- Then Put G3YCC Acores SSB TX back in operation

-- Put W4OP Barebones Superhet on 17 with NE602 down converter.

-- Netting and audible spur problems

-- Now working many stations with this old "split" TX/RX

Pete's Bench

-- The Peashooter

-- Dean's VWS build of your DC RX

-- Building a SSB Transceiver Doc

-- Homebrew Crystal Filters

-- The shrinking of the PSSST

-- PSSST on Hack-A-Day

Bad Dead Soldering Stations

-- My X-Tonics 4000 dies.   But it left behind a great box with ample socketry.

Mailbag:

AA1TJ Mike Rainey --- Again in the Hobbit Hole! 486 kc RX

Thomas K4SWL -- Radio Astronomy and the Raspberry PI

WC8C Dennis Invite to the L'Anse Creuse ARC   FB  Fun

Todd K7TFC got boosted at Tektronix Beaverton Ore.

What happened to Chuck Adams K7QO?  His work taken off the net.

W1MJA ex WN2RTH

N7DA worked W7ZOI in Sweepstakes.  FB

Kirk NT0Z formerly of ARRL HQ

Farhan VU2ESE was up in the Pench Forest, trying to spot a Tiger!

We spoke to Farhan's Lamakaan ARC in Hyderabad.  QO-100 beam down!

Dean KK4DAS's 16 watter.   On SS blog

Scott WA9WFA  Bad 6U8s?   Ordering 6EA8s

Bruce KC1FSZ Peppermint Bark gift box

Mike WU2D:  Book by Frank Harris on Homebrew radio

Bob Scott KD4EBM So many good ideas and links

Rogier PA1ZZ sending parts packages -- Thanks Rogier

Putting a Barebones Superhet on 17 Meters with an NE602 Converter (Video)

Armed now with a NanoVNA, I took a look at the passband of the 5 MHz filter in my Barebones Superhet (BBRX)  W4OP built it on a Circuit Board Specialist Board.  He put a 5 MHz CW filter in there;  I broadened the passband for phone by changing the values of the capacitors. Here is what the passband now looks like in the NanoVNA:

This is what DeMaw would call an "LSB filter."  You would get much better opposite sideband rejection by using it with an LSB signal, placing the BFO/Carrier Oscillator slightly above the passband, in this case near 5.002 MHz.

When I first built the down converter to get the 18.150 MHz signal down to the 7 MHz range (where I had the receiver running) I used an 11 MHz crystal for the NE602's local oscillator.  But this created a big problem:  18.150 - 11 =   7.150 MHz.  That is in the 40 meter band, but note:  NO SIDEBAND INVERSION.   Then in the BBRX  7.150 MHz - 2.150 MHz = 5 MHz  (the filter frequency) but again:  NO SIDEBAND INVERSION.   The signal started as a USB signal and remained a USB signal.

I briefly tried shifting the BFO frequency to the other side of the filter passband.  If I could get it to around 4.985 MHz, it might work, but because the filter passband was so large, and because the crystal frequency was so low, I was unable to shift the crystal frequency that far.  In any case the results would have been less than ideal because of the "LSB" shape of the filter.  Back to the drawing board.

I decided to cause one sideband inversion.

At first I put a 25.175 MHz crystal module in my down converter.  This shifted the 17 meter phone band down to the 40 meter CW band.  It worked, but I cold hear strong 40 meter CW  signals being picked up by the wiring of the receiver (the box is plastic!).  I went back to the module jar in search of frequency that would move 17 meter phone to the 40 meter area (so I would not have to re-build the BBRX front end) but outside the actual 40 meter band.

I ended up using a 25 MHz crystal in the down converter. 25 MHz - 18.150 MHz = 6.85 MHz WITH SIDEBAND INVERSION.  After checking on the NA5B Web SDR to see that there are no strong signals in the 6.835 to 6.89 MHz range, I retuned the output circuit on the converter and tweaked the input capacitor on the Barebones.  I shifted the VFO frequency down to 1.835 to 1.89 MHz and put the BFO at 5.002 MHz.   The receiver was inhaling on 17 meter SSB.

One more change to the BBRX:  in his June 1982 QST article, DeMaw warned that trying to get speaker level audio out of the 741 op amp that he used would result in audio distortion.  And it did.  So I put one of those little LM386 boards I have been using into the BBRX box.  I just ran audio in from the wiper of the AF gain pot.  It sounds good.

In effect this is my first double-conversion receiver.  I usually prefer single conversion, but this project has highlighted for me one of the advantages of double conversion for someone like me who eschews digital VFOs:   Starting with a crystal filter at 5 MHz,  with double conversion I could keep the frequency of the LC VFO low enough to ensure frequency stability.  That would have been impossible with a 5 MHz IF in a single conversion 17 meter rig.  But if I were starting from scratch for a 17 meter rig, I could stick with single conversion by building the filter at 20 MHz,  keeping the VFO in the manageable 2 MHz range.

Now, on to the SSB transmitter.   The Swan 240 dual crystal lattice filter from the early 1960s needs some impedance matching.

Michael Newton Hopkins, AB5L, Author of the FMLA series

Better than anyone else ever has, Michael Hopkins, in his fictional series about Frank Jones and the Five Meter Liberation Army, captures the spirit of homebrew radio.  There is just so much of us in those articles.  I read them some 20 years ago when they first came out; reading them again recently I appreciated them even more.

Frank was a bit of a curmudgeon:  There are jabs at the appliance operators, Hiram Percy Maxim, hamfests, SSB, the Collins collectors, the QRP movement,  and even Electric Radio magazine.  Howard Armstrong makes an appearance, as do Carl and Jerry.  It all made me want to put a five pin SAW filter on my lapel.

As I read, I thought about what a great writer Michael was.  When I Googled him, a few of the results led me back to  my own book.  I'd forgotten that Michael was in there, but he is.  On one page he advises me how to power my Mate for the Mighty Midget receiver without using a power transformer (a very Frank Jones approach).  On another page I note that Michael had sent me a kit for the Doug DeMaw "Barbados Receiver."  Wow, that was my first Superhet.  (I also have one that was built by Dale Parfitt.)  Most of the parts were put to use in other projects.  But I still have the board (see above).  Reminded that it came from Michael, I will now have to complete the construction.

Below is a nice article about Michael that appeared in the Flying Pigs newsletter. (Click on the images for an easier read.)

The articles can be found here:

http://soldersmoke.blogspot.com/2021/07/summer-reading-for-homebrewers-frank.html

Michael's 2005 Obituary:

https://obits.dallasnews.com/us/obituaries/dallasmorningnews/name/michael-hopkins-obituary?pid=14406223

Thank you Michael.  VIVA EL FMLA!

QSO Today Interview with Dale Parfitt W4OP

Eric Guth 4Z1UG interviewed Homebrew Hero Dale Parfitt W4OP on the QSO Today podcast.   The interview is really great.  Listen here:

https://www.qsotoday.com/podcasts/W4OP

Wow, libration fading.  Who knew?

Dale has appeared in many SolderSmoke bolg posts and podcasts.  He is definitely in the Homebrew Hero category.

Check out some of those blog posts here:
https://soldersmoke.blogspot.com/search?q=Parfitt

and here:

https://soldersmoke.blogspot.com/search/label/Parfitt--%20Dale

Thanks to Eric and Dale.

The Last Hallicrafters Transceiver...REBORN! TWICE!

Pete Juliano and his colleague Giovanni Manzoni led me this morning to the happy land of Hallicrafters hybrid nostalgia.

It all started with Pete's latest blog post:
http://n6qw.blogspot.com/2016/10/more-junk-box-rigs.html

I admit that I had never even heard of the Hallicrafters FPM rigs.  Pete's (uh, I mean Giovanni's) video show's Pete's junk-box rebuild of the old rig.  Very nice.   Note the presence of the Si5351...

I needed more background info, so I turned to YouTube.  This led me to more old friends:  Dale Parfitt W4OP has a really nice video of his rebuild of the Halli FPM rig (see above).  From his video we learn why Dr. Juliano prescribed a dose of Si5351 for the patient:  Dale tells us that VFO instability was a major problem with this rig.   Dale fixed his with the addition of an X-Lock board from yet another friend of SolderSmoke: Ron G4GXO of Cumbria Designs.

Dale really out-did himself by building an add-on accessory box for the FPM.  Very nice.  I especially liked the addition of the W3NQN passive audio filter for CW.   I always have misgivings about adding audio filters to Direct Conversion receivers -- this will reduce QRM, but you are still listening to both sides of zero beat.  But when you add a sharp CW audio filter to an SSB superhet you will end up with true "single signal reception."  FB Dale.

Please send Pete Juliano and Giovanni Manzoni some positive feedback and words of encouragement.  Please urge them to keep up the good work on the blog and the videos.  Theirs is sometimes a lonely task -- without feedback it can sometimes seem like putting messages in a bottle and throwing them into the digital sea.   Please let them know that their work is being seen!  Leave some positive comments on Pete's blog.  (No snark please -- The Radio Gods will retaliate if you harsh N6QW's mellow.)

Preserving Vanguard 1

Ira Flatow of "Science Friday" was recently talking about how best to preserve important bits of the history of mankind's exploration of space.  Our old friend Vanguard 1 was mentioned several times.  It is now the oldest satellite still in space.

You can listen to the Science Friday show here:

http://www.sciencefriday.com/segments/protecting-the-historic-human-record-in-space/

They also have a transcript of the show on the same page.

SolderSmoke fans will remember the Vanguard adventures of Mike Rainey AA1TJ:

http://soldersmoke.blogspot.com/search?q=Vanguard

This seems to be the month for Vanguard:  just a couple of weeks ago, on 40 meters I spoke to Dale Parfitt W4OP. Dale was one of the first people to pick up Mike Rainey's Vanguard replica signals (see link above).

AND...

The Vanguard reproduction project came up during Eric Guth 4Z1UG's "QSO Today" interview with Graham Firth G3MFJ of the G-QRP Club:

http://www.qsotoday.com/podcasts/g3mfj

(Graham has such a great voice.  He definitely SHOULD build a phone rig!)

VIVA VANGUARD!

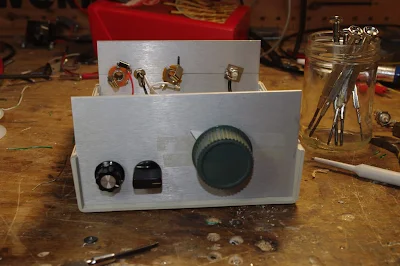

A Lot of Soul in the Barbados Receiver

After a rather frustrating period working on the Hallicrafters S38-E, I decided to do something different, maybe work on something that isn't known as a "widow maker."    So pulled off the shelf an old Doug DeMaw Barbados Superhet Receiver.  "Barbados" sounds much nicer than "widow maker."  This design and this particular receiver have quite a history:

-- DeMaw presented the receiver in the June 1982 issue of QST.  It uses six 40673 dual gate MOSFETS, an op amp for the audio, and a 250 Hz crystal lattice filter at 3.579 MHz using (YES!) colorburst crystals.  The local oscillator was a VXO. Doug's was for 20 meters, but his article provided a lot of info on how to put it on other bands.

-- I built one in 1997, building it for 20 CW.   That project is described here:

http://www.gadgeteer.us/RXHB.HTM

-- Sometime around 2000 I bought another one.  This one had been built on a FAR Circuits board by Dale Parfitt, W4OP.  Dale had used 5 MHz rocks for the filter and had used a varactor tuned circuit for the LO (with a DC-DC converter to increase the range).   I put it aside.  It sat on shelves in several countries for a number of years.  (I even have a THIRD one, a partially stuffed board that Michael Hopkins (the guy who wrote those great stories about Frank Jones coming back to life to retake the 5 meter band)).

-- I started working on it again around 2005. We were in London by then.  I put it on 17 meters using a capacitor-tuned VXO running up at around 23 MHz.   I did a quick and dirty broadening of the crystal filter by simply changing the capacitor values in the filter.  This worked, but obviously it needed refinement.  As I asked questions about this receiver, Dale Parfitt came to my rescue.  It took us both a while to realize that he was advising me on the receiver that he had built.  That was kind of cool.

-- I used the receiver with my first homebrew SSB transmitter.  I had them both running with separate VXO's, with crystals switched from the front panels.  I'm sure there were no other rigs like this on the air anywhere in the world.

-- By 2011 we were back in the US and I put my old homebrew SSB station back on the air.

-- In October 2014 I was building my first BITX rig.  I built it for 17 meters using a 23 MHz VXO.  I took the crystals out of the Barebones receiver.  Later that month I used an Arduino/AD9850 DDS arrangement as a digital crystal replacement:

http://soldersmoke.blogspot.com/2015/01/digitizing-barebones-superhet.html

It worked, but it looked hideous.

-- By January 2015 I had learned a lot about how to characterize crystals and build filters.  I decided to take a shot at properly expanding the frequency response of the 5 MHz Barbados filter.  I measured the characteristics of the crystals and got the proper cap values for a 3 kHz filter.  When I tested it, the width seemed fine, but the ripple was more than I had expected.  Kind of disappointed I moved on to other projects.

-- Which brings us to today.  Escaping from the S38-E, I decided to put the Barbados receiver on yet another band.  With sunspot numbers in decline, I opted for 40.  And I wanted this to be an analog, L-C VFO project. No DDS, no PLL.  It would be all L and C for me, thank you! First I played around with the idea of running the VFO up at around 12 MHz, subtracting the 7 MHz sigs to get to the 5 MHz IF. But then I did a sweep of the filter.  First, there was a nice surprise -- the width AND the ripple were fine, just what I wanted (I must have had a measuring problem when I checked the ripple before).  And the skirt was MUCH steeper on the high side than on the low side.  This is why these filters are often called Lower Sideband filters.  You get better opposite sideband rejection if you use them as LSB filters.

With the skirt situation in mind, I realized that running the LO at 12 MHz would not be a great idea. Our rule of thumb tells us that if we SUBTRACT the signal with the modulation from the signal without the modulation, we'll get SIDEBAND INVERSION.  So 7 MHz LSB would end up as 5 MHz USB.  Not great.  Plus, it is hard to get a VFO stable at 12 MHz.

So I opted to run the LO at around 2 MHz.  There would be no sideband inversion, and it would be easier to get the oscillator stable.   Wary of the threat of harmonics and spurs, I ran the receiver for a few days using an Arduino AD9850 at 2.125 MHz - 2.300 MHz.  It worked fine.

I now have the receiver running with a real Colpitts VFO.  The inductance is provided by an adjustable, shielded coil at around 1.5 uH (it was on the board) in series with a 3 uH toroid (type 6 yellow).  The feedback caps are at 2200 pf with a 1020 cap in series.  The main tuning cap is a small air variable with 73 pf max.  This only lets me tune about 40 kHz of the band, so, in a variation on the old Main Tune -- Bandspread technique, I have a rotary switch that adds capacitance in parallel with the main tuning cap.  I can now tune from 7.141 to 7.300.  The tuning rate is fine and I didn't have to mess with a reduction drive.

More Barbados receiver blog posts here:

http://soldersmoke.blogspot.com/search?q=barbados

Kind of amazing that DeMaw designed this thing 34 years ago.  A lot of soul in this old machine.

Video on W4OP's Progressive Receiver (Solid State Drake 2-B)

This is so great.  I saw pictures of Dale's receiver a few years ago, but somehow missed the video.   I am the proud owner of a W4OP-built Barebones Superhet.  And, of course, of a Drake 2B (mine has tubes!)
